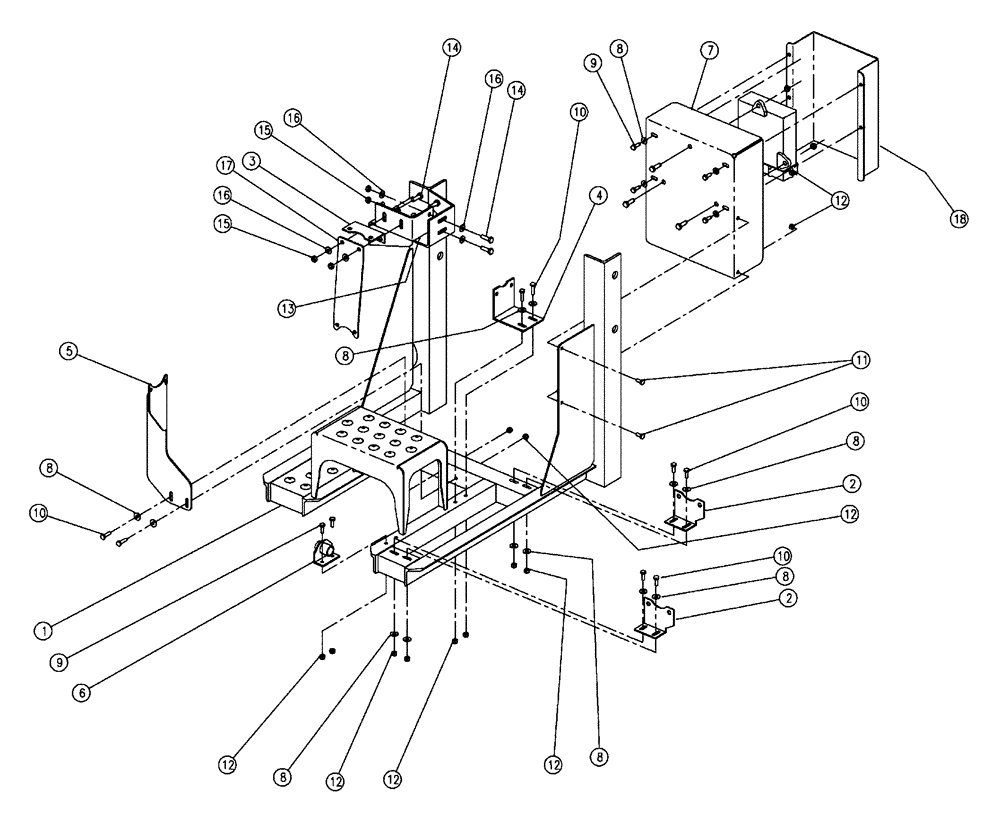

Запчасти Case IH FLX810 (10-018) - PUMP STATION GROUP BRACKET, 60’ & 70’ Wet Kit

1

BN319418

BRACKET, SUPPORTING

Pump Station

1шт.

2

BN304424

BRACKET

2" Valve, Lower

2шт.

3

BN319416

MOUNTING PLATE

Ball Valve

1шт.

4

BN304426

BRACKET

1" Valve, Lower

1шт.

5

87267528

PLATE

1" Valve Mount

1шт.

6

BN304465

BRACKET

Water Valve

1шт.

7

87268844

PLATE

Mounting, Decal/Node

1шт.

8

BN50138

WASHER,1/4", SS

16шт.

9

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

10шт.

10

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

8шт.

11

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

2шт.

12

BN55359

LOCK NUT,1/4"-20, SS

16шт.

13

BN319417

MOUNT

Ball Valve Mount

1шт.

14

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

15

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

16

BN50142

WASHER,5/16", Stainless Steel

8шт.

17

343165A1

PLATE

1" Valve Mount

1шт.

18

87268846

COVER

Electronic Node

1шт.

19

BN50681

BOLT,Hex, 1/4" - 20 x 1-1/2", SST

1/4-20 X 1.5, HH, SS

4шт.
