Запчасти Case IH FLX810 (10-015) - SPRAYBAR GROUP, EXTEND, LH, 60’ Wet Kit

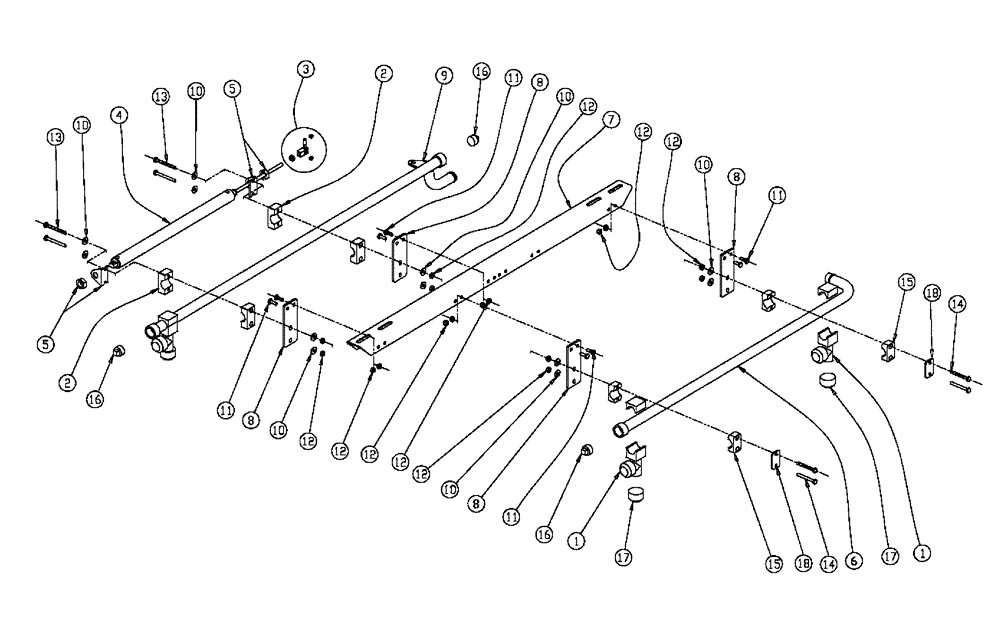

Схема запчастей Case IH FLX810 - (10-015) - SPRAYBAR GROUP, EXTEND, LH, 60’ Wet Kit
6
11
11
18
10
1
12
12
13
14
12
5
10
1
17
5
7
8
16
12
12
11
10
10
8
12
11
12
4
2
16
16
12
8
9
18
2
10
13
8
10
15
15
17
3
14

Артикул

Название

Примечание

Количество

1

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

3шт.

2

BN25984

CLAMP

Single (3/4" Pipe)

2шт.

3

BN300254

KIT

Clevis, .31 Rod

1шт.

4

BN300256

CYLINDER,Double Acting, 7.92mm Rod, 381mm Stroke

1.06 x 15, Air

1шт.

5

BN300257

REPAIR KIT

Foot Bracket, 1.06 Cylinder

2шт.

6

BN300301

BAR

Spray, Midship, LH

1шт.

7

BN301630

SUPPORT

Spraybar, Rear

1шт.

8

BN301631

BRACKET

Spraybar, Rear

4шт.

9

BN301633

BAR

Spray, Extend, LH

1шт.

10

BN50138

WASHER,1/4", SS

12шт.

11

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

12

BN55359

LOCK NUT,1/4"-20, SS

16шт.

13

BN55371

BOLT

1/4-20 X 2.5, HH, SS

4шт.

14

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

4шт.

15

BN65324

CLAMP

1" OD, Poly

2шт.

16

BN73553

PLUG

3/4" NPT, Poly

3шт.

17

BN74619

CAP

W/Gasket Tee Jet Blk

3шт.

18

BN311249

PLATE

Single, Size 3

2шт.

Выбрано товаров: 18
