Запчасти Case IH FLX810 (10-011) - PNEUMATIC GROUP, R SPRAY BAR, 60’ & 70’ Wet Kit

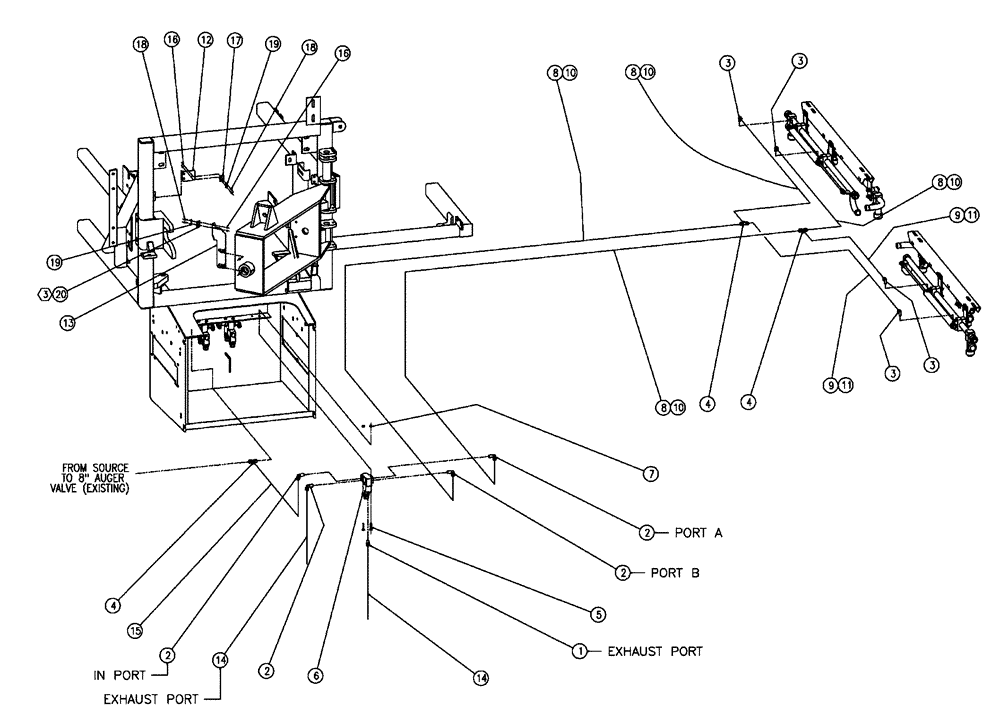

Схема запчастей Case IH FLX810 - (10-011) - PNEUMATIC GROUP, R SPRAY BAR, 60’ & 70’ Wet Kit
4
8
11
9
19
15
18
19
3
2
13
14
7
3
12
16
16
3
1
9
2
10
6
2
11
10
2
14
20
10
18
3
8
10
4
8
3
5
4
8
17

Артикул

Название

Примечание

Количество

1

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

2

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

3

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

4

BN2399408

UNION TEE

Tube UTC140

3шт.

5

BN313804

SCREW,#10 - 24 x 1 1/2", SST

10-24 X 1.50, BSH, SS

2шт.

6

BN301602

VALVE

Air, 12VDC, 2 Position

1шт.

See Fig. 10-012

1шт.

6a

84269276

SEAL

Pressure, Pilot Valve (Not Pictured)

1шт.

7

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

8

BN303141

AIR HOSE,155.00"

Blue

4шт.

9

BN303142

AIR HOSE,65.00"

1/4, Blue

2шт.

10

BN303180

LOOM

Plastic, 1/4" X 100"

4шт.

11

BN303181

LOOM

Plastic, 1/4: X 100"

2шт.

12

BN303223

BRACKET

Magnetic Switch

1шт.

13

BN303227

BRACKET

Magnetic Switch

1шт.

14

BN303254

AIR HOSE,43.00"

1/4", Black

2шт.

15

BN303257

AIR HOSE,33.00"

1/4", Black

1шт.

16

BN50125

NUT

4-40, HH, G5

4шт.

17

BN68182

ACTUATOR

Magnetic, 12V

2шт.

18

BN68260

SCREW,Hex, #4 - 40 x 1/2", Gr 5

HH, #4-40 x .50, G5

4шт.

19

BN68261

WASHER

#4, Flat, G5

4шт.

20

BN68183

ACTUATOR

Magnet

1шт.

Выбрано товаров: 22
