(10-010) - WET BOOM, 2.5”, REAR TUBE, 70’

Запчасти Case IH FLX810 (10-010) - WET BOOM, 2.5”, REAR TUBE, 70’ Wet Kit

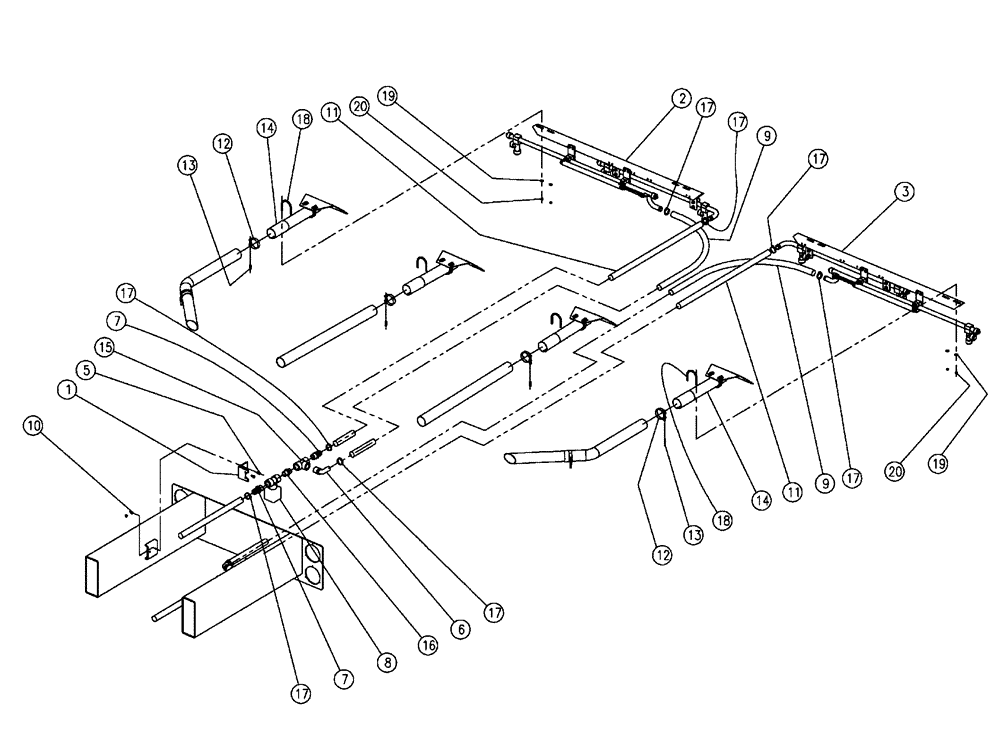

Схема запчастей Case IH FLX810 - (10-010) - WET BOOM, 2.5”, REAR TUBE, 70’ Wet Kit
17
7
6
13
17
10
2
17
8
18
1
12
11
17
5
12
3
16
17
20
18
13
17
20
15
19
19
17
9
14
9
14
7
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

2шт.

2

BN315273

Spraybar Group, Extend, RH, 70

1шт.

See Fig. 10-014

1шт.

3

BN315274

Spraybar Group, Extend, LH, 70

1шт.

See Fig. 10-016

1шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

6

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

7

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

8

87389559

VALVE

Electric, 1" Ball

2шт.

9

BN53756

HOSE,42.00"

2шт.

10

BN55359

LOCK NUT,1/4"-20, SS

4шт.

11

BN66856

HOSE

1" EPDM x 25.00"

2шт.

12

87271751

CLAMP

Hi-Torque

4шт.

13

BN68086

CAP

RND, Rubber, .25 ID x 1.00

4шт.

14

BN68393

TUBE

EXT., 14.50, 2.50

4шт.

15

BN73629

TEE

1" Poly Pipe

2шт.

16

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

17

BN310447

HOSE CLAMP

#20, Stainless Steel

10шт.

18

BN21276

CLAMP

2 1/2" Muffler

4шт.

19

BN50146

WASHER,3/8", Stainless

8шт.

20

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.
