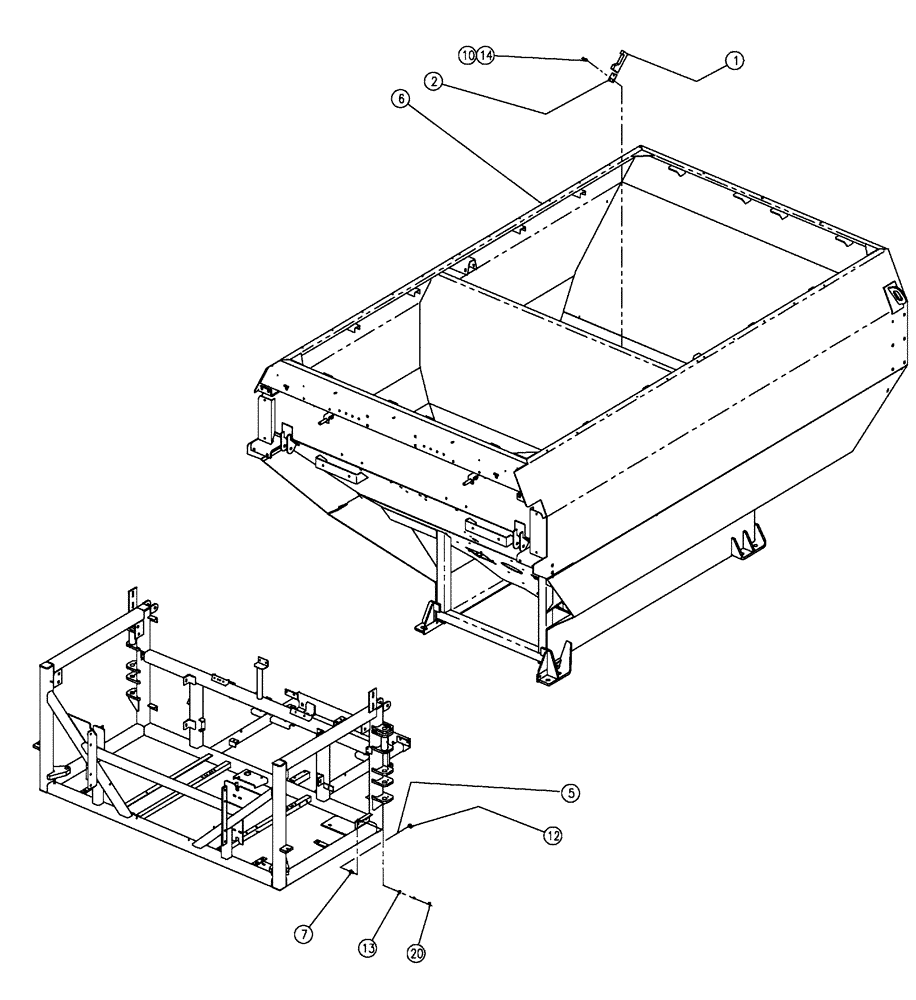

Запчасти Case IH FLX810 (01-005) - BOX PARTS GROUP Basic Unit

1

BN319646

SENSOR

Hopper Level

1шт.

See Fig. 13-015

1шт.

2

BN319230

COVER

Wire, Hop. Sensor

1шт.

5

BN311096

HOSE

Grease, 104.0, Swivel

1шт.

6

87267587

BOX

With Misc MTS 438A

1шт.

7

BN35805

ADAPTER

str 1/8 npsm-nptf

1шт.

10

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

12

BN311142

ELBOW

Fitting, Body-90 Degree

1шт.

13

BN53570

BHD LOCK NUT

1шт.

14

BN55359

LOCK NUT,1/4"-20, SS

2шт.

20

BN69951

CAP

Grease

1шт.
