Запчасти Case IH FLX810 (11-002) - EDUCTOR MOUNT GROUP Reload Control & Chemical Eductor

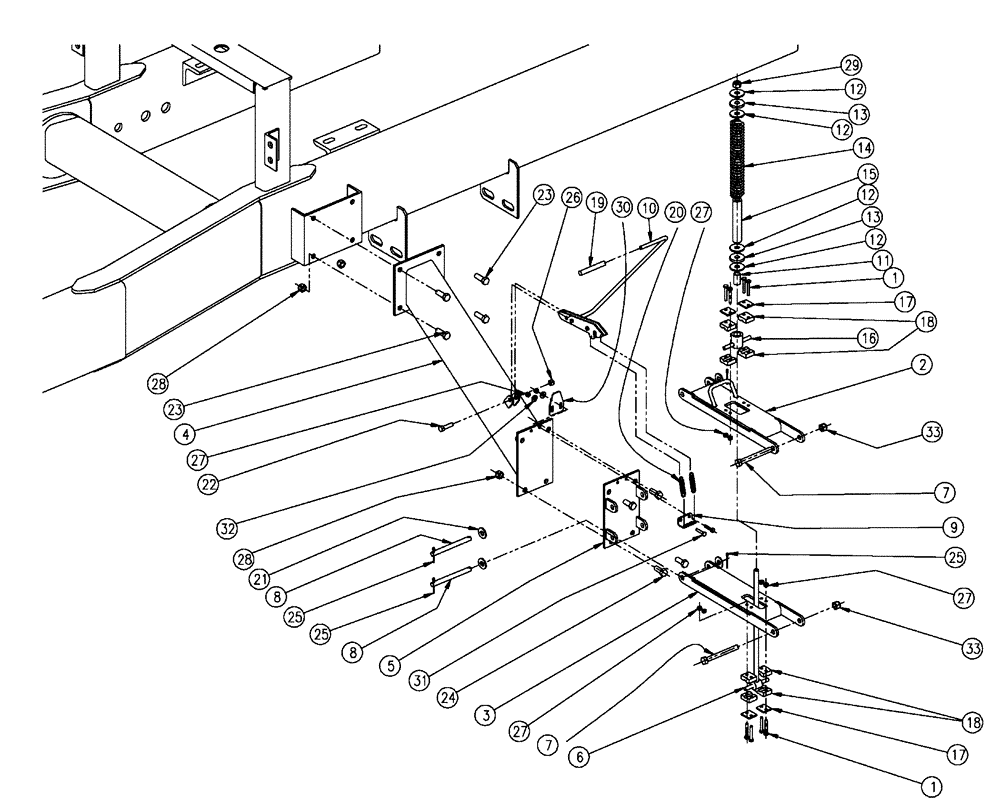

Схема запчастей Case IH FLX810 - (11-002) - EDUCTOR MOUNT GROUP Reload Control & Chemical Eductor
29
14
28
27
2
33
26
1
13
9
7
1
27
27
31
23
28
2
10
27
15
12
3
12
25
5
24
17
32
19
18
4
30
17
22
11
33
6
23
8
25
12
25
7
16
12
13
8
18
21

Артикул

Название

Примечание

Количество

1

BN300395

BOLT,1/4"-20 x 1-3/4", Stainless Steel

8шт.

2

BN313552

LINK

Inductor, Upper

1шт.

3

BN313553

LINK

Inductor, Lower

1шт.

4

BN312964

BRACKET, SUPPORTING

Mount, Eductor

1шт.

5

BN312965

MOUNTING PLATE

Eductor Links

1шт.

6

BN311873

PIVOT

Rod, Spring Pivot

1шт.

7

BN301360

BOLT

Hex, M12-1.75 x 120, SS

2шт.

8

BN311877

PIN

Lower Pivot

2шт.

9

BN312966

BRACKET

Latch Spring

1шт.

10

BN313667

LATCH

Chem Tank

1шт.

11

BN311880

PIVOT

Bushing, Spring

1шт.

12

BN311881

WASHER

1.63 X 10 GA

4шт.

13

BN311882

WASHER

1.63 X .25 Rubber

2шт.

14

BN311883

SPRING

1.55 X 9.75 X .207, SS

1шт.

15

BN311884

BUSHING

Eductor Stop

1шт.

16

BN313394

PIVOT

Block, Shaft

1шт.

17

BN311886

PLATE

Single, Size 1

4шт.

18

BN307078

CLAMP

Pair-3/8 Tube

4шт.

19

BN311888

CAP

Round, .375 ID X 3, Black

1шт.

20

BN311889

SPRING

.50 X 2.00 X .067, SS

2шт.

21

BN50595

WASHER,1/2", Stainless

4шт.

22

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

1шт.

23

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

24

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

25

BN50604

COTTER PIN

1/8 X 1 & 1/2

4шт.

26

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.

27

BN55359

LOCK NUT,1/4"-20, SS

10шт.

28

86992215

LOCK NUT,1/2"-13, GC

8шт.

29

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

1шт.

30

BN312967

LATCH

Stop

1шт.

31

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4"-20 X 1-1/4", Stainless Steel

2шт.

32

BN50138

WASHER,1/4", SS

2шт.

33

BN313561

LOCK NUT

M12-1.75, NLN, SS

2шт.

Выбрано товаров: 33
