Запчасти Case IH FLX810 (12-012) - TANK & CRADLE GROUP, PRESSURE WASHER Pressure Washer

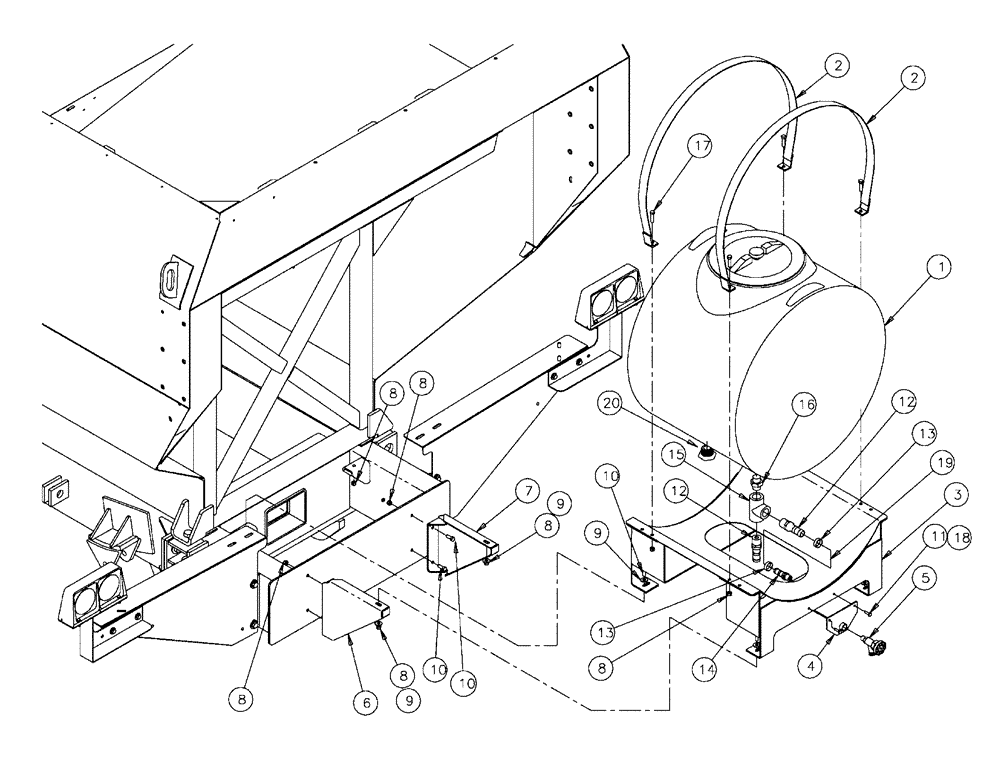

Схема запчастей Case IH FLX810 - (12-012) - TANK & CRADLE GROUP, PRESSURE WASHER Pressure Washer
5
6
7
20
9
8
8
10
13
12
12
16
1
2
8
17
10
9
14
10
19
18
13
9
3
2
8
1
15
4
8
8

Артикул

Название

Примечание

Количество

1

BN311561

TANK

Poly, 65 Gallon

1шт.

87266426

COVER

Tank, Pressure Washer

1шт.

Service Parts For Ref. 1

1шт.

2

BN312120

STRAP

65 Gallon Tank

2шт.

3

BN320719

SUPPORT

Cradle, 65 Gallon Tank

1шт.

4

BN312121

MOUNTING PLATE

Water Valve

1шт.

5

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

6

BN320735

SUPPORT

Pressure Washer, LH

1шт.

7

BN320734

SUPPORT

Pressure Washer, RH

1шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

9

BN50146

WASHER,3/8", Stainless

4шт.

10

BN50258

BOLT,3/8"-16 X 1.25", Stainless

8шт.

11

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

2шт.

12

BN73561

FITTING

Barb, 3/4 NPT X 3/4 HS

2шт.

13

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

14

BN322536

ADAPTER,1/2" Male NPT x 3/4" Hose Barb, Poly

1/2" MPT x 3/4" Hose Barb, Poly

1шт.

15

BN73560

TEE

3/4" NPT, Poly

1шт.

16

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

17

BN50263

BOLT,3/8"-16 X 1-3/4", Stainless Steel

4шт.

18

BN55359

LOCK NUT,1/4"-20, SS

2шт.

19

BN53862

EPDM 3/4" ID X 8.5"

1шт.

20

BN73655

PLUG,1-1/4" Male NPT, Poly

1 & 1/4 NPT Pipe Poly

1шт.

Выбрано товаров: 22
