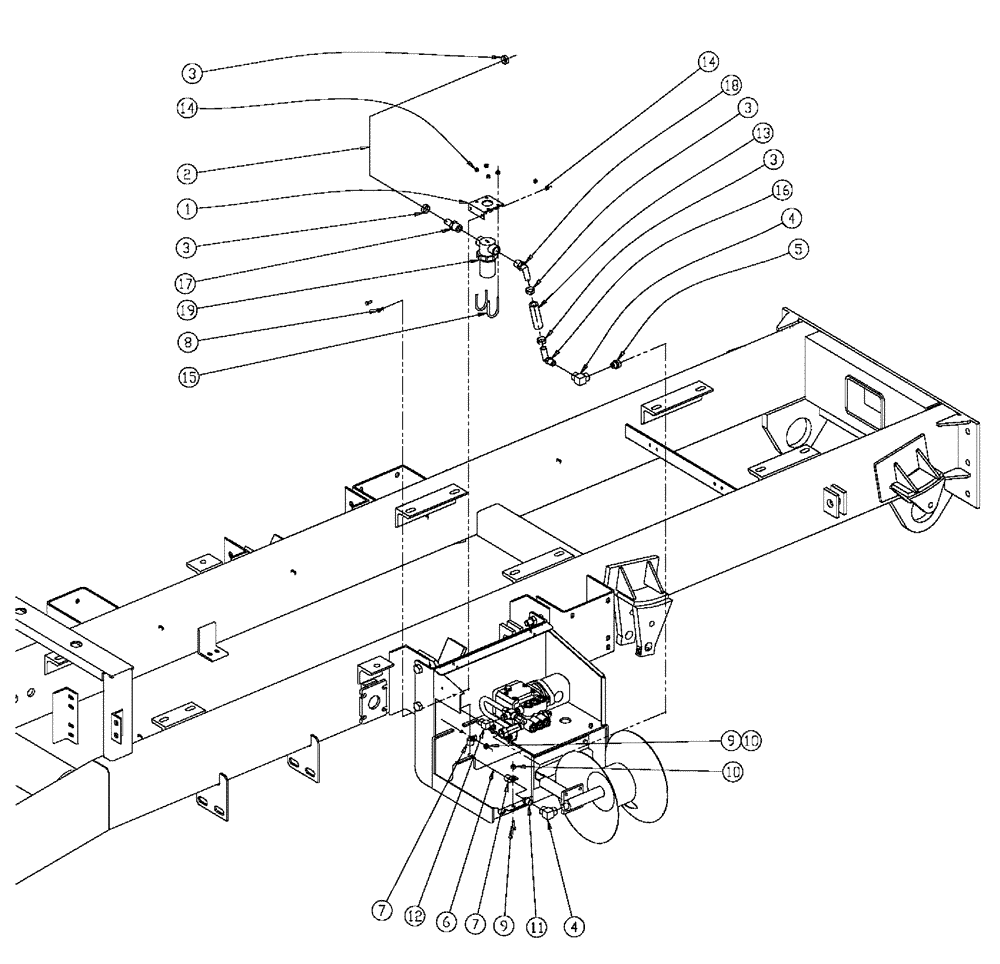

Запчасти Case IH FLX810 (12-008) - PRESSURE WASHER PLUMBING GROUP Pressure Washer

1

BN304533

MOUNTING PLATE

Strainer

1шт.

2

BN310324

3/4" EPDM x 190"

1шт.

3

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

4

BN311525

FITTING

08NPTF-08NPTF90

2шт.

5

BN311603

COUPLING

3/4-11.5 NHM, 1/2-14 NPTM

1шт.

6

BN311605

HOSE,39.00"

1шт.

7

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

8

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

9

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

11

BN51102

FITTING

Adapter, 1/2NPT x 3/8 NPT, STL

1шт.

12

BN51128

ADAPTER

06 nptf - 06 nptf 90º

1шт.

13

BN53916

3/4" ID EPDM X 4"

1шт.

14

BN55359

LOCK NUT,1/4"-20, SS

6шт.

15

BN68011

U-BOLT

BOLT "U" 1/4-20 SS, 1" pipe

2шт.

16

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

1шт.

17

BN73561

FITTING

Barb, 3/4NPT X 3/4 HS

1шт.

18

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

19

BN73567

FILTER STRAINER

3/4"

1шт.

BN73681

FILTER STRAINER

Screen, #50 Mesh

1шт.

Service Parts For Ref. 19

1шт.
