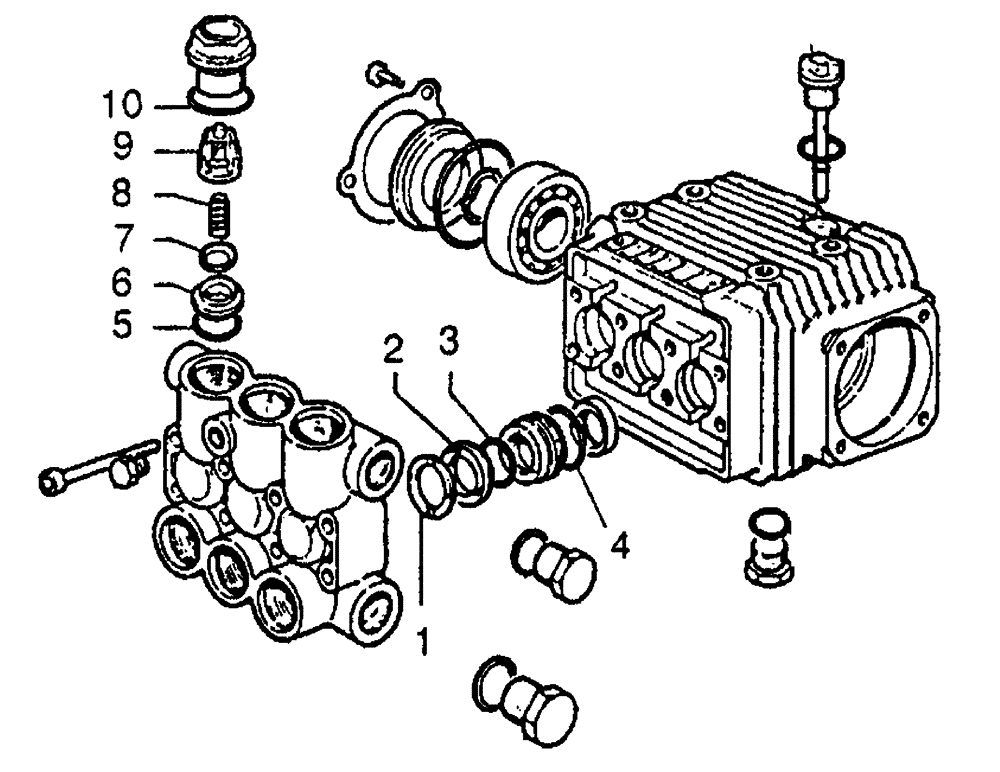

Запчасти Case IH FLX810 (12-004) - PRESSURE WASHER WATER PUMP Pressure Washer

BN313238

SEAL KIT

Piston For Water Pump

1шт.

Service Parts For P/N BN313235

1шт.

1

NSS

NOT SOLD SEPARAT

Head Ring

3шт.

2

NSS

NOT SOLD SEPARAT

Packing

3шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

BN313239

CHECK VALVE

Kit For Water Pump

1шт.

Service Parts For Ref. 4

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

6шт.

6

NSS

NOT SOLD SEPARAT

Valve Plate

6шт.

7

NSS

NOT SOLD SEPARAT

Spring

6шт.

8

NSS

NOT SOLD SEPARAT

Valve Guide

6шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

6шт.

10

NSS

NOT SOLD SEPARAT

Cap

6шт.
