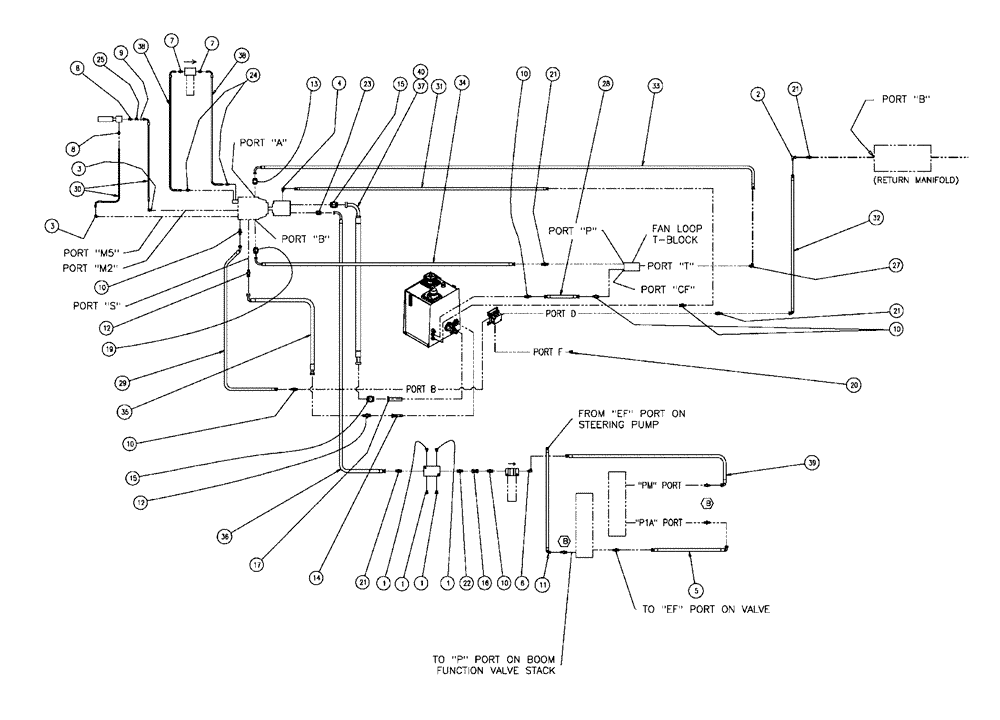

Запчасти Case IH FLX810 (06-004) - FITTING GROUP, PUMP, 3 WHEELER Hydraulic Plumbing

1

BN21243

PLUG

Hex, 7/8"-14, O-Ring

4шт.

2

BN302447

FITTING

16MOR-16FORX90

1шт.

3

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

3a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

BN53590

ELBOW

12MOR-10MB x 90

1шт.

5

BN318887

HOSE ASSY.

12 X 25"

1шт.

6

BN302568

ELBOW

12MOR-12MBX90

1шт.

7

BN302652

FITTING

8MOR-12MB

2шт.

8

BN302647

FITTING

6MOR-8MB

2шт.

9

BN305412

O-RING

For -6 FFOR

1шт.

10

BN302655

FITTING

12 MOR-12 MB

6шт.

11

BN320155

HOSE

12 X 102"

1шт.

12

BN302660

FITTING

20MOR-20MB

2шт.

13

BN302793

REPAIR KIT

Split Flange, 62-61

1шт.

14

BN303528

STRAINER ASSY.

32MBX-20Fb,100

1шт.

15

BN303630

REPAIR KIT

Split Flange, 2, Code 61

2шт.

16

BN307956

FITTING

12Forx12Forx

1шт.

17

BN310209

FILTER STRAINER

48MB-32 SF, 100

1шт.

19

BN52315

KIT

1" Split Flange Code 62

1шт.

20

BN54270

PLUG

EXT. W/O-Ring #12

1шт.

21

BN57223

FITTING

16 MOR-16 MB

4шт.

22

BN57233

FITTING

12 MOR-16 MB

1шт.

23

BN67548

REPAIR KIT

1" Split Flange code 61

1шт.

24

BN302651

FITTING

8MOR-10MB

2шт.

25

342569A1

ORIFICE

.060-6 disc

1шт.

27

BN302574

ELBOW

16MOR-16MBX90

1шт.

27a

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

O-ring boss end

1шт.

27b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face seal end

1шт.

28

BN313285

HOSE

12 X 70

1шт.

29

87267897

HOSE

12 X 66"

1шт.

30

87267873

HOSE

4 X 29"

2шт.

31

BN311401

HOSE,47.00"

1шт.

32

87267890

HOSE

16 X 82"

1шт.

33

87267893

HOSE

16 X 65"

1шт.

34

87267895

HOSE

16 X 57"

1шт.

35

87267896

HOSE

20 X 64"

1шт.

36

BN313851

HOSE,42.50"

1шт.

37

BN313853

HOSE

32 X 77

1шт.

38

BN313282

HOSE

8 X 30

2шт.

39

87267891

HOSE

12 X 38"

1шт.

40

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

2шт.
