Запчасти Case IH FLX810 (07-019) - MOTOR, HYDRAULIC, CONVEYOR & BINS Hydraulic Components

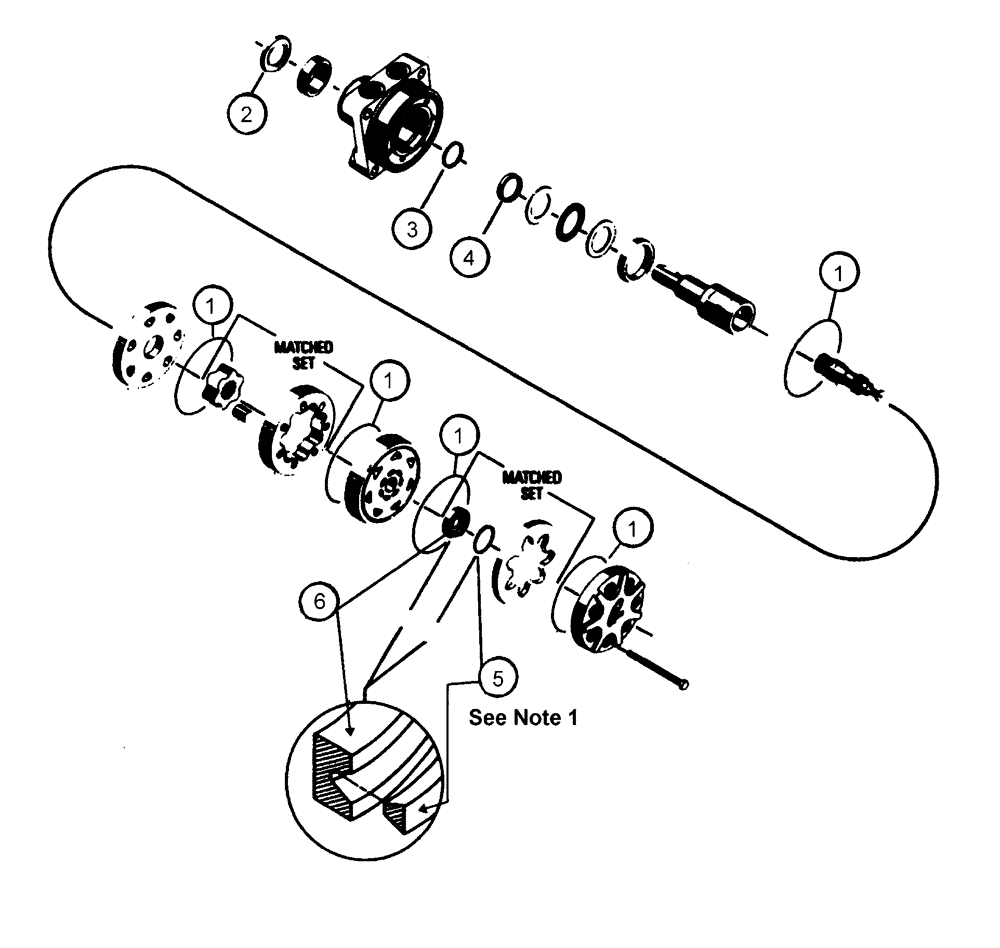

Схема запчастей Case IH FLX810 - (07-019) - MOTOR, HYDRAULIC, CONVEYOR & BINS Hydraulic Components
2
1
1
6
3
5
1
1
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

BN65718

HYDRAULIC MOTOR

Conveyor Belt and Co-Ap Bin

1шт.

BN67519

SEAL KIT

MG Ross Motor

1шт.

1

NSS

NOT SOLD SEPARAT

O-Ring

5шт.

Service Parts For P/N BN65718

1шт.

2

NSS

NOT SOLD SEPARAT

Dirt And Water Seal

1шт.

Service Parts For Ref. 1

1шт.

3

NSS

NOT SOLD SEPARAT

Commutator

1шт.

Service Parts For Ref. 2

1шт.

4

NSS

NOT SOLD SEPARAT

Back Up Washer

1шт.

Service Parts For Ref. 3

1шт.

5

NSS

NOT SOLD SEPARAT

Inner Seal

1шт.

Service Parts For Ref. 4

1шт.
