Запчасти Case IH FLX810 (01-002) - GATE GROUP, AUXILIARY BIN Basic Unit

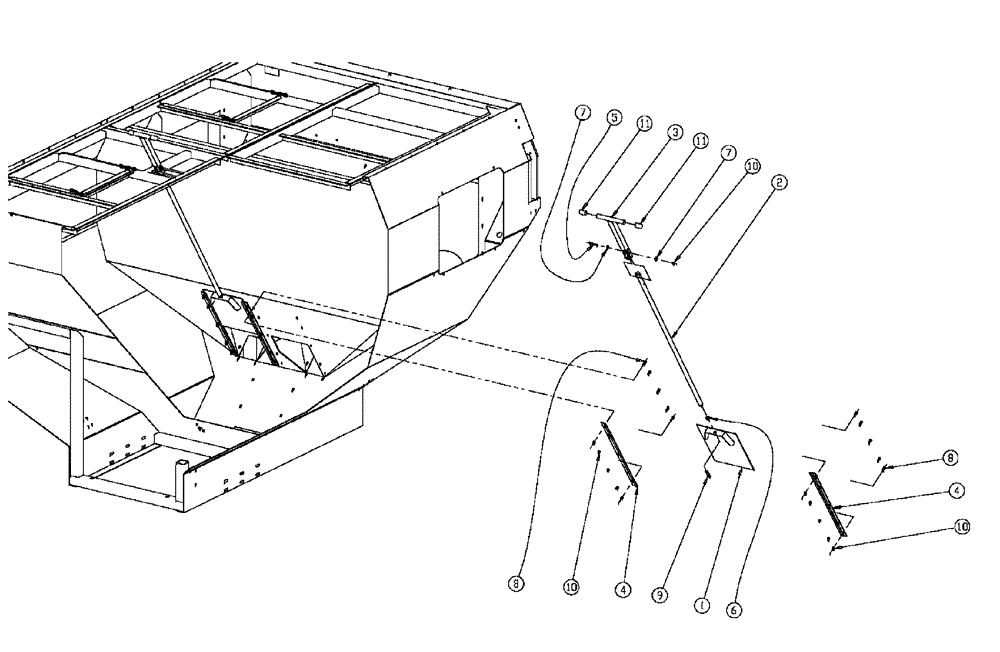

Схема запчастей Case IH FLX810 - (01-002) - GATE GROUP, AUXILIARY BIN Basic Unit
8
6
6
10
1
10
4
10
10
7
4
9
11
7
3
1
4
10
4
11
8
5
9
8
8
2

Артикул

Название

Примечание

Количество

1

BN311028

GATE ASSY

Auxiliary Bin

2шт.

2

BN311029

ROD

Auxiliary Bin Gate

2шт.

3

BN311030

HANDLE

Auxiliary Bin Gate

2шт.

4

BN311036

SLIDE

Auxiliary Bin Gate

4шт.

5

BN311038

NUT

5/16-18 X 2, HH, SS

2шт.

6

BN50071

NUT,1/2"-13, Stainless

2шт.

7

BN50142

WASHER,5/16", Stainless Steel

4шт.

8

BN50476

BOLT,5/16"-18 x 0.75", Stainless

20шт.

9

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

2шт.

10

BN55361

NUT,5/16"-18, Nylon, Stainless

22шт.

11

BN65712

CAP

RND, .937 ID x 1.50 IL

4шт.

Выбрано товаров: 11
