/ / / / / / / / (07-014[02]) - VALVE BLOCK, 8 BANK, W/AUGER

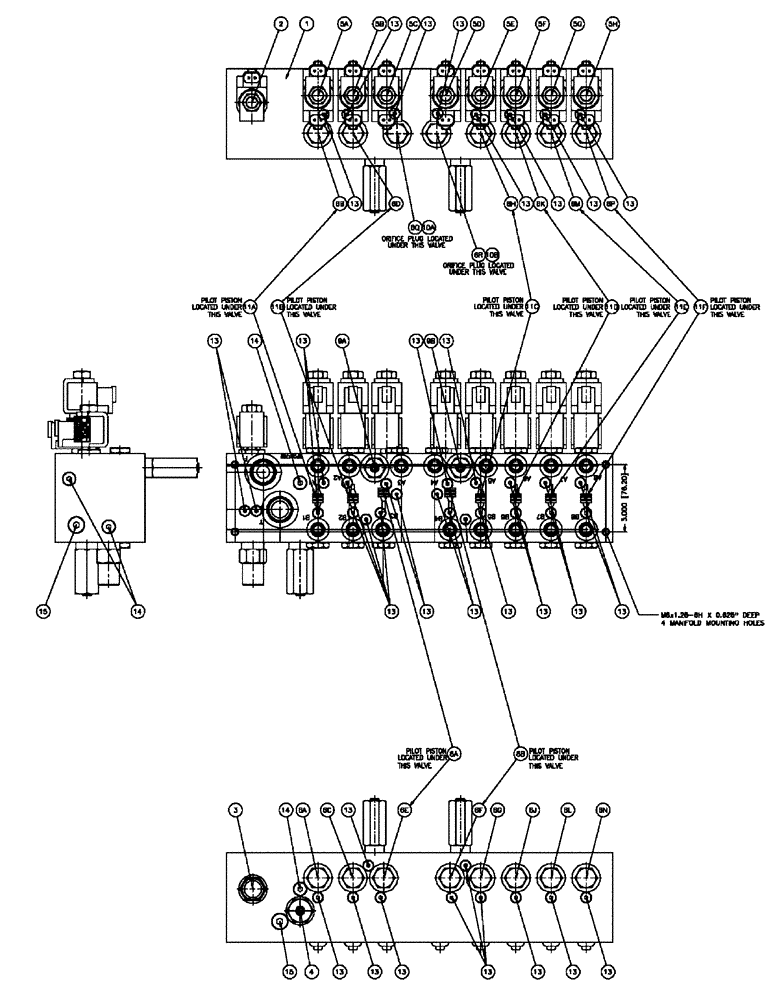

Запчасти Case IH FLX810 (07-014[02]) - VALVE BLOCK, 8 BANK, W/AUGER Hydraulic Components
![Схема запчастей Case IH FLX810 - (07-014[02]) - VALVE BLOCK, 8 BANK, W/AUGER Hydraulic Components](https://partsell.ru/storage/images/caseih/816051.png)
13
13
6k
5d
13
13
10b
13
2
6o
6b
14
11e
3
13
13
5b
13
6l
13
13
13
6b
11d
5e
6a
11a
13
6r
6m
13
13
6c
9b
1
13
6p
13
13
11b
13
6h
6f
9a
6a
13
13
5f
13
6j
15
6d
14
6n
13
5h
6q
13
10a
4
13
6e
15
14
5g
5a
13
13
11f
5c
11c
13
1
87267927
BLOCK
M/C
1шт.
2
BN318091
SOLENOID VALVE
1шт.
3
BN318087
CONTROL
1шт.
4
BN303856
VALVE PRESSURE RELIE
1800 PSI
1шт.
5
343278A1
VALVE
3/4 Way Solenoid
8шт.
6
87590496
VALVE
check, 100 psi
16шт.
8
343286A1
PISTON
pilot
2шт.
9
87267924
VALVE PRESSURE RELIE
2шт.
10
343287A1
PLUG
orfice, .069
2шт.
11
343280A1
PISTON
pilot
6шт.
12
87267925
COIL,12V
12V DC
17шт.
13
86632547
PLUG,Hex, 5/16"-24 ORB
64шт.
14
278548
PLUG,Hex, 7/16"-20 ORB
5шт.
15
9625178
PLUG,9/16" - 18 ORB
3шт.
344012A1
HYDRAULIC VALVE
8 section manifold
1шт.
1
87267723
VALVE
8 Bank, With Auger
1шт.
See Refs. 1 - 18 (With Fittings)
1шт.
7
BN302655
FITTING
12 MOR-12 MB
3шт.
16
BN302646
FITTING
11/16-16 ORFS x 9/16-18 ORB
16шт.
