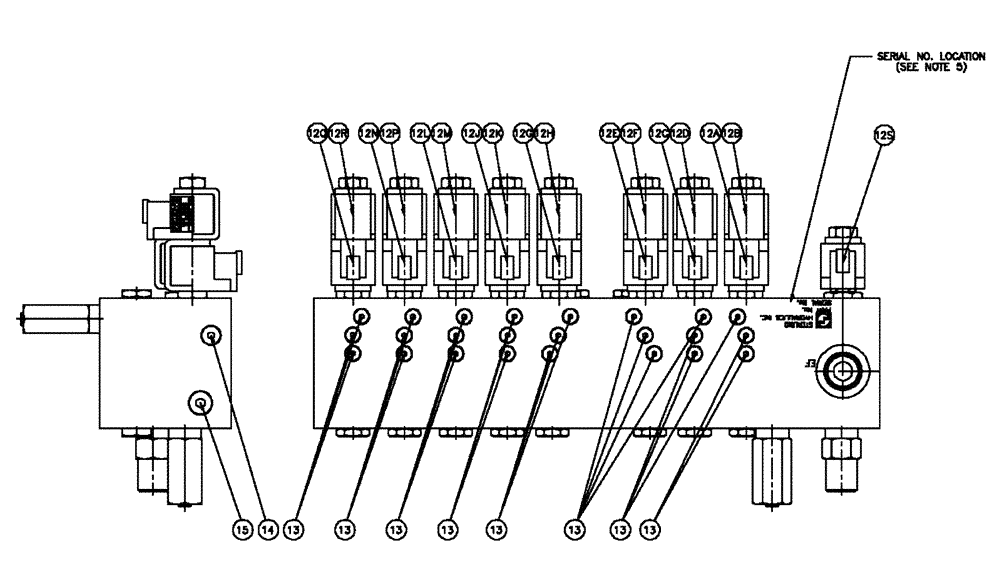

Запчасти Case IH FLX810 (07-014[01]) - VALVE BLOCK, 8 BANK, W/AUGER Hydraulic Components

1

87267927

BLOCK

M/C

1шт.

2

BN318091

SOLENOID VALVE

1шт.

3

BN318087

CONTROL

1шт.

4

BN303856

VALVE PRESSURE RELIE

1800 PSI

1шт.

5

343278A1

VALVE

3/4 Way Solenoid

8шт.

6

87590496

VALVE

check, 100 psi

16шт.

8

343286A1

PISTON

pilot

2шт.

9

87267924

VALVE PRESSURE RELIE

2шт.

10

343287A1

PLUG

orfice, .069

2шт.

11

343280A1

PISTON

pilot

6шт.

12

87267925

COIL,12V

12V DC

17шт.

13

86632547

PLUG,Hex, 5/16"-24 ORB

64шт.

14

278548

PLUG,Hex, 7/16"-20 ORB

5шт.

15

9625178

PLUG,9/16" - 18 ORB

3шт.

344012A1

HYDRAULIC VALVE

8 section manifold

1шт.

1

87267723

VALVE

8 Bank, With Auger

1шт.

See Refs. 1 - 18 (With Fittings)

1шт.

7

BN302655

FITTING

12 MOR-12 MB

3шт.

16

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

16шт.
