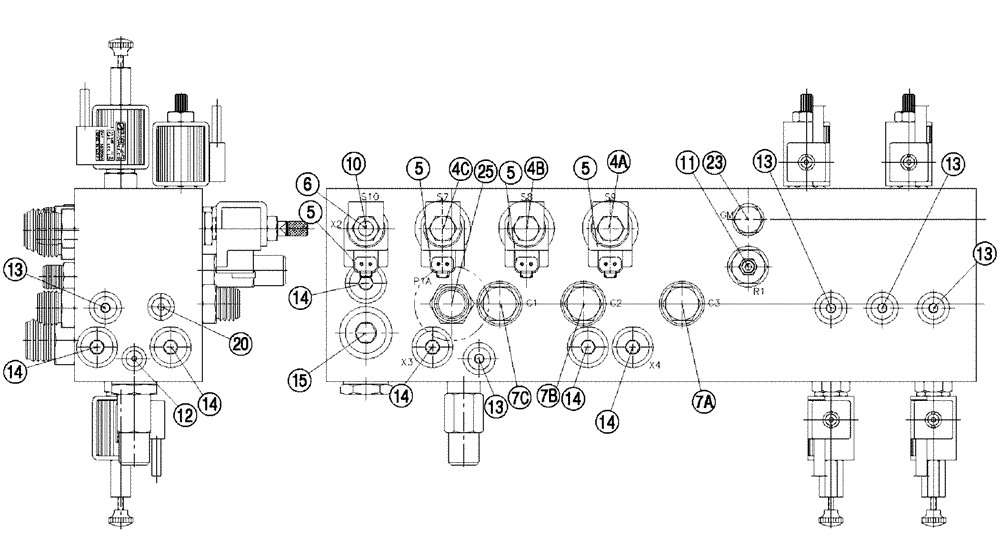

Запчасти Case IH FLX810 (07-013[01]) - VALVE BLOCK, DOUBLE BIN, W/AUGER Hydraulic Components

1

NS

NOT SERVICED

Block

1шт.

2

BN303849

SOLENOID VALVE

2/3 Way

4шт.

3

87267935

COIL

12V, DC

4шт.

4

BN303851

SOLENOID VALVE

2/2 Way

3шт.

5

87267925

COIL,12V

12V DC

4шт.

6

BN303853

HYDRAULIC VALVE

2/2 Way, Unloader

1шт.

7

BN324995

CHECK VALVE

30 PSI

3шт.

8

BN303855

VALVE PRESSURE RELIE

2700 PSI

1шт.

9

BN303857

HYDRAULIC VALVE

Flow Control

1шт.

10

BN303859

PLUG

Orfice, .242"

1шт.

11

87266994

VALVE PRESSURE RELIE

2175 psi

1шт.

12

86529630

PLUG,Hex Soc, 3/8"-24 ORB

8шт.

13

9625178

PLUG,9/16" - 18 ORB

12шт.

14

86625138

PLUG,7/18" - 14

17шт.

15

9841223

PLUG,1-1/16" - 12 ORB

3шт.

16

BN303865

PLUG

Orfice, .020"

1шт.

17

87270622

HYDRAULIC VALVE

Prop Flow Control

2шт.

18

BN303867

PLUG

Cavity

1шт.

19

71100209

PLUG,Hex Soc, 3/4"-16 ORB

3шт.

20

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

22

87267936

COIL

12V, DC

2шт.

23

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

87267731

HYDRAULIC VALVE

Manifold, Double With Fittings

1шт.

1

87267741

HYDRAULIC VALVE

Manifold, Double, With Fittings

1шт.

See Above

1шт.

24

BN302650

FITTING

8 MOR-8 MB

3шт.

25

BN302655

FITTING

12 MOR-12 MB

3шт.

26

BN57233

FITTING

12 MOR-16 MB

1шт.

28

BN57223

FITTING

16 MOR-16 MB

1шт.
