Запчасти Case IH FLX810 (01-001) - 8” AUGER GROUP Basic Unit

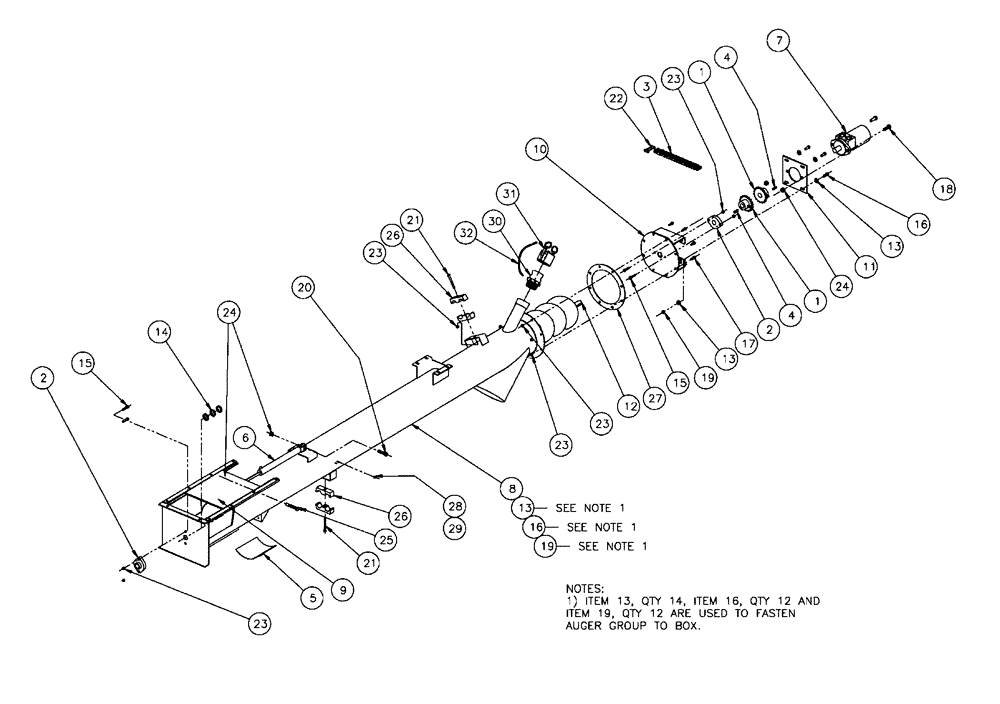

Схема запчастей Case IH FLX810 - (01-001) - 8” AUGER GROUP Basic Unit
19
26
25
11
16
12
14
10
28
29
9
23
20
2
13
1
7
23
26
13
21
2
27
30
24
8
23
5
19
4
31
15
24
21
6
18
16
23
17
32
3
23
15
22
13
4
1

Артикул

Название

Примечание

Количество

1

BN10181

SPROCKET

50B18 With 1" Bore

2шт.

2

BN10500

FLANGED BEARING,25.4mm ID

Flange 1"

2шт.

3

BN17701

Chain-#50-2 DBL RLR x 18 LN

1шт.

4

BN23880

KEY

1/4" X 1/4" X 1.25

2шт.

5

BN302843

DOOR

Cleanout, 8 IN

1шт.

6

87266444

CYLINDER,Double Acting, 19.05mm Rod, 254mm Stroke

Hydraulic, 1.5 x 10 x .75

1шт.

See Fig. 07-002

1шт.

7

BN306957

HYDRAULIC MOTOR

8 Cu In, 4" & 8" Augers

1шт.

See Fig. 07-018

1шт.

8

BN321047

TUBE

8" Auger

1шт.

9

BN313600

GATE ASSY

8 Inch Auger

1шт.

10

BN35482

COVER

8 In Auger

1шт.

11

BN35484

PLATE

MTR, 8 IN Auger

1шт.

12

BN35672

AUGER

Screw-8 IN Auger

1шт.

13

BN50146

WASHER,3/8", Stainless

22шт.

14

BN50168

WASHER,25.4mm ID x 38.1mm OD x 3.57mm Thk

WHM, 1" ID x 1.5 OD x 10 GA

6шт.

15

BN50237

BOLT,5/16"-18 X 1-1/2", Stainless Steel

4шт.

16

BN50254

BOLT,3/8"-16 x 1", Stainless

16шт.

17

BN50476

BOLT,5/16"-18 x 0.75", Stainless

8шт.

18

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

2шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

20

BN50786

BOLT,1/2"-13 x 2", Stainless

1шт.

21

BN309848

SCREW,Hex, 5/16" - 18 x 3", SST

2шт.

22

BN53159

LINK

CONN. 50-2

1шт.

23

BN55361

NUT,5/16"-18, Nylon, Stainless

14шт.

24

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

4шт.

25

BN55369

BOLT,1/2"-13 x 3", Stainless

1шт.

26

BN68161

CLAMP

Dual (1 & 1/4" Tube)

2шт.

27

BN68577

GASKET

8 Inch Auger, Upper

1шт.

28

BN9990114

STRAP

"Eye Ty" 06205 3M

1шт.

29

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

1шт.

30

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

F 2" Poly

1шт.

31

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

32

BN321087

STRAP

Lanyard, 11" Polyurethane

1шт.

Выбрано товаров: 34
