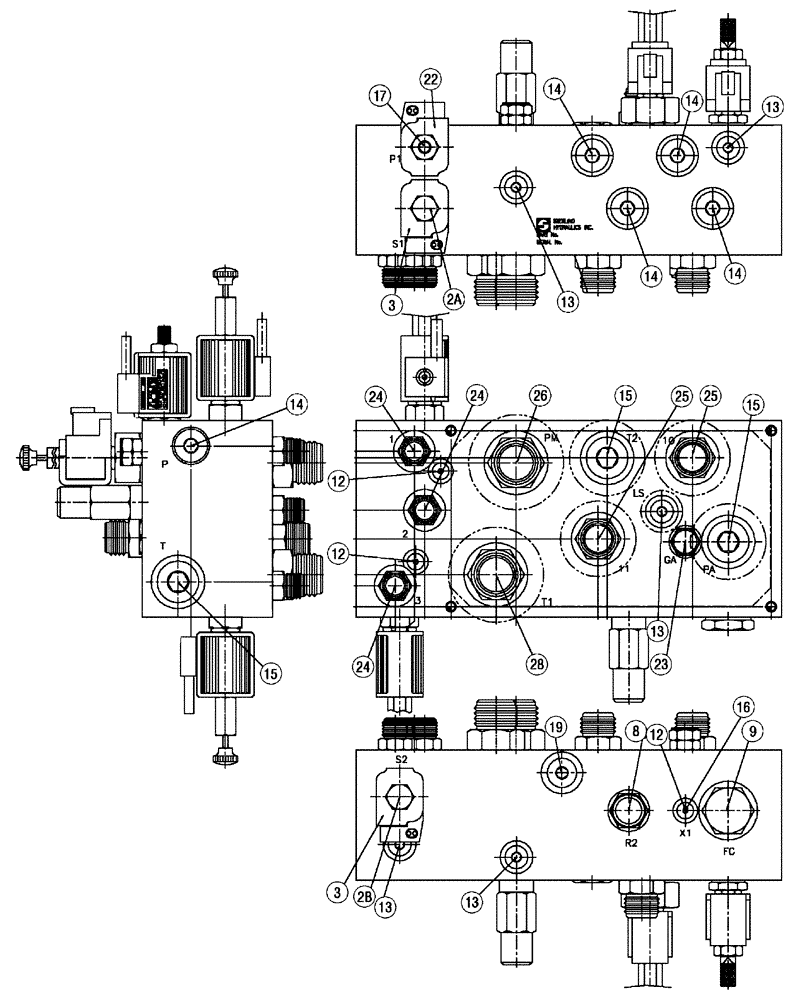

Запчасти Case IH FLX810 (07-010[02]) - VALVE BLOCK SINGLE BIN Hydraulic Components

1

87267937

BLOCK

M/C

1шт.

2

BN303849

SOLENOID VALVE

2/3 Way

2шт.

3

87267935

COIL

12V, DC

2шт.

4

BN303851

SOLENOID VALVE

2/2 Way

1шт.

5

87267925

COIL,12V

12V DC

2шт.

6

BN303853

HYDRAULIC VALVE

2/2 Way, Unloader

1шт.

7

BN324995

CHECK VALVE

30 PSI

1шт.

8

BN303855

VALVE PRESSURE RELIE

2700 PSI

1шт.

9

BN303857

HYDRAULIC VALVE

Flow Control

1шт.

10

BN303859

PLUG

Orfice, .242"

1шт.

11

87266994

VALVE PRESSURE RELIE

2175 psi

1шт.

12

86529630

PLUG,Hex Soc, 3/8"-24 ORB

4шт.

13

9625178

PLUG,9/16" - 18 ORB

7шт.

14

86625138

PLUG,7/18" - 14

11шт.

15

9841223

PLUG,1-1/16" - 12 ORB

4шт.

16

BN303865

PLUG

Orfice, .020"

1шт.

17

87270622

HYDRAULIC VALVE

Prop Flow Control

1шт.

19

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

20

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

22

87267936

COIL

12V, DC

1шт.

23

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

87267733

HYDRAULIC VALVE

Manifold, Single With Fittings

1шт.

87267733R

REMAN-HYD VALVE

Reman Manifold, Single With Fittings

1шт.

87267733C

CORE-VALVE HYD

Core Return Number

1шт.

1

87267743

HYDRAULIC VALVE

Manifold, Single With Fittings

1шт.

See Above

1шт.

24

BN302650

FITTING

8 MOR-8 MB

3шт.

25

BN302655

FITTING

12 MOR-12 MB

3шт.

26

BN57233

FITTING

12 MOR-16 MB

1шт.

28

BN57223

FITTING

16 MOR-16 MB

1шт.
