Запчасти Case IH FLX810 (05-006) - EXTENSION GROUP, 70’, 46” Extensions & Mount Group

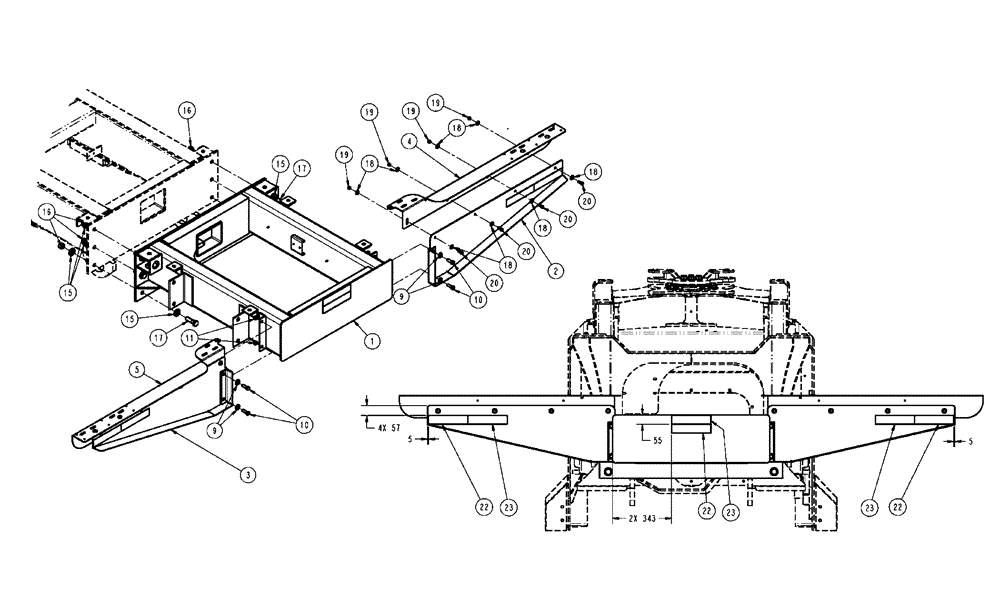

Схема запчастей Case IH FLX810 - (05-006) - EXTENSION GROUP, 70’, 46” Extensions & Mount Group
20
9
23
23
16
19
16
20
22
18
22
20
22
17
9
19
15
17
18
15
20
2
18
10
23
4
5
19
11
15
19
10
18
18
3
1

Артикул

Название

Примечание

Количество

1

BN320783

EXTENSION

46"

1шт.

2

343765A1

SUPPORT TUBE

tube RH

1шт.

3

343774A1

SUPPORT TUBE

tube LH

1шт.

4

87267710

BRACKET

46" Extension, 60-70' Boom, LH

1шт.

5

87267711

BRACKET

46" Extension, 60-70' Boom, RH

1шт.

9

BN50595

WASHER,1/2", Stainless

4шт.

10

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

11

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

4шт.

15

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

12шт.

16

264031

NUT,M20 x 2.5, Cl 10

6шт.

17

86639154

BOLT,Hex, M20 x 65mm, Cl 10.9

6шт.

18

BN50146

WASHER,3/8", Stainless

16шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

20

BN50254

BOLT,3/8"-16 x 1", Stainless

8шт.

22

311863A1

REFLECTOR

Retroreflective Red

3шт.

23

311865A1

REFLECTOR

fluorescent orange

3шт.

Выбрано товаров: 16
