Запчасти Case IH FLX810 (05-004) - TAILLIGHT ASSEMBELY, RIGHT REAR Extensions & Mount Group

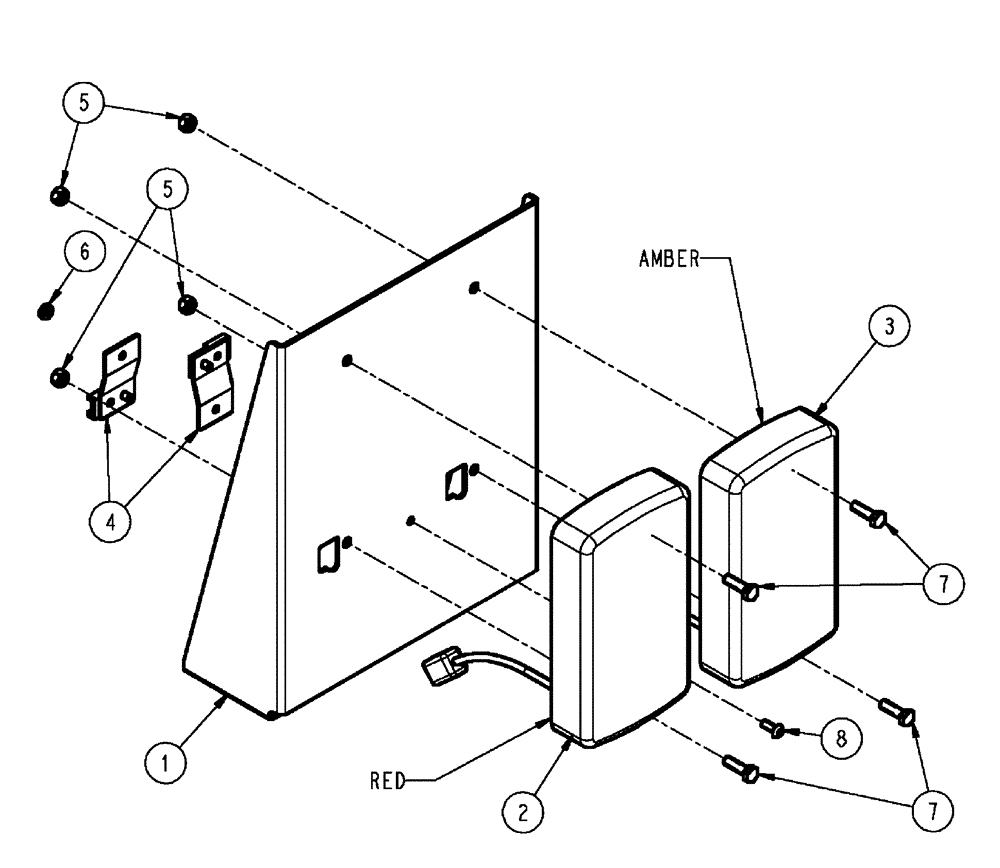

Схема запчастей Case IH FLX810 - (05-004) - TAILLIGHT ASSEMBELY, RIGHT REAR Extensions & Mount Group
6
7
5
8
1
7
4
3
5
2

Артикул

Название

Примечание

Количество

1

343771A1

BRACKET, SUPPORTING

Mount, Tail Light, Flex

1шт.

2

BN325077

LAMP, TAIL

LIGHT, TAIL Led Red, 12V, 36 LED Pattern

1шт.

2

84385294

LAMP

LED Red, 12V, 24 LED Pattern

1шт.

3

BN325078

LIGHT

Turn, Led Amber, 12V, 36 LED Pattern

1шт.

3

84385299

LAMP

Turn, LED Amber, 12V, 24 LED Pattern

1шт.

4

87267087

RETAINER

Assembly, Deutsch LH

2шт.

5

353308

NUT,M6 x 1.0, Cl 8

4шт.

6

BN50050

NUT

10-32 HEX

1шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

8

BN52348

BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless

10-32 X 1/2 SSPH, Phillip

1шт.

Выбрано товаров: 10
