(05-002) - TAILLIGHT GROUP 18” 60/70 438A

Запчасти Case IH FLX810 (05-002) - TAILLIGHT GROUP 18” 60/70 438A Extensions & Mount Group

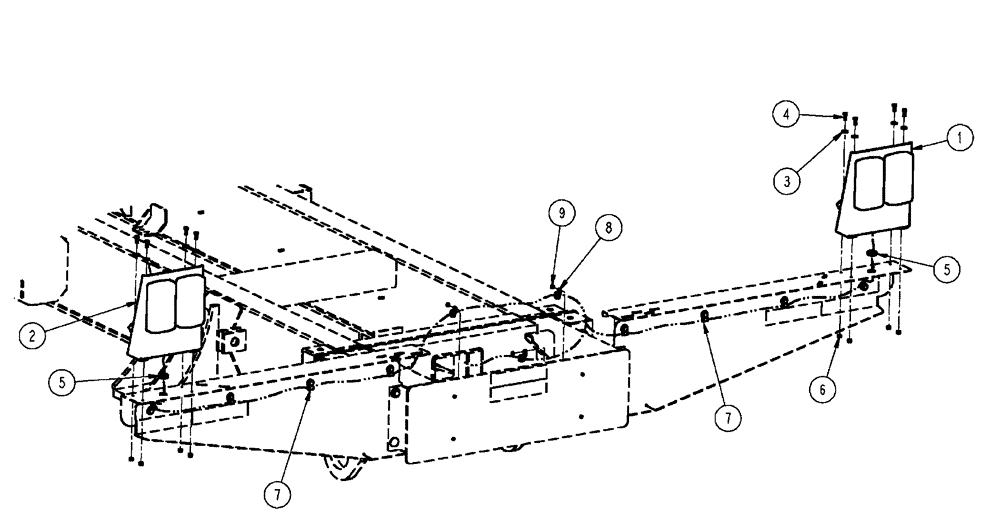

Схема запчастей Case IH FLX810 - (05-002) - TAILLIGHT GROUP 18” 60/70 438A Extensions & Mount Group
8
5
4
2
6
5
1
7
3
9
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Taillight Assembly, Right Rear

1шт.

See Fig. 05-004

1шт.

2

NS

NOT SERVICED

Taillight Assembly, Left Rear

1шт.

See Fig. 05-005

1шт.

3

BN50138

WASHER,1/4", SS

8шт.

4

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

5

BN85855

GROMMET

Lg, for 1/2" hose

2шт.

6

BN55359

LOCK NUT,1/4"-20, SS

8шт.

7

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

8

BN9990114

STRAP

"Eye Ty" 06205 3M

3шт.

9

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

3шт.
