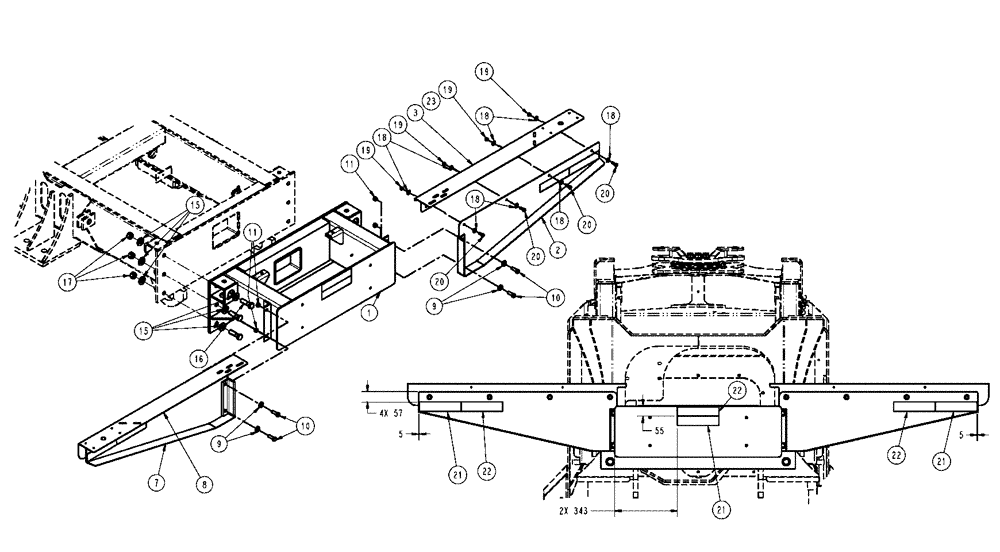

Запчасти Case IH FLX810 (05-001) - EXTENSION GROUP, 60’, 18” Extensions & Mount Group

1

BN320725

EXTENSION

18"

1шт.

2

343765A1

SUPPORT TUBE

tube RH

1шт.

3

343772A1

BRACKET

18" extension, 60-70' boom, RH

1шт.

7

343774A1

SUPPORT TUBE

tube LH

1шт.

8

343775A1

BRACKET

18" extension, 60-70' boom, LH

1шт.

9

BN50595

WASHER,1/2", Stainless

4шт.

10

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

11

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

4шт.

15

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

12шт.

16

87342043

BOLT,Hex, M20 x 65mm, Cl 10.9

M20 - 2.5 X 65, 10.9, DOR

6шт.

17

264031

NUT,M20 x 2.5, Cl 10

6шт.

18

BN50146

WASHER,3/8", Stainless

16шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

20

BN50254

BOLT,3/8"-16 x 1", Stainless

8шт.

21

311863A1

REFLECTOR

Retroreflective Red

3шт.

22

311865A1

REFLECTOR

fluorescent orange

3шт.
