Запчасти Case IH FLX810 (04-023) - BOOM GROUP, 2.5”, OUTER, LH, 70’ Boom Group

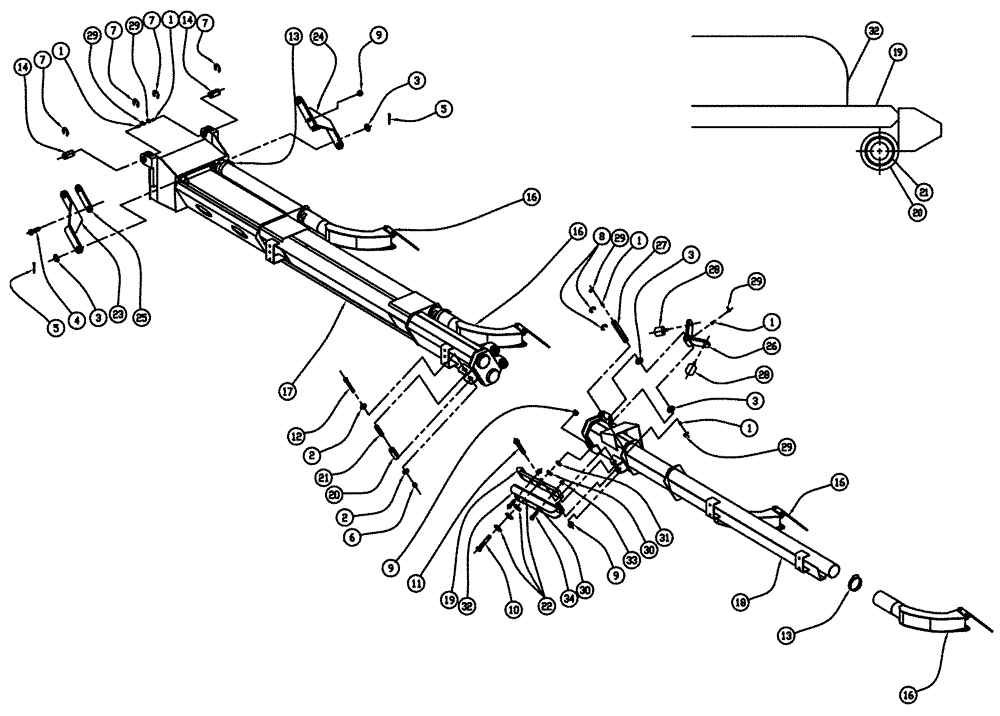

Схема запчастей Case IH FLX810 - (04-023) - BOOM GROUP, 2.5”, OUTER, LH, 70’ Boom Group
3
8
1
11
16
21
4
20
21
29
7
7
14
19
1
29
23
30
26
16
9
16
7
10
1
3
27
30
29
25
18
29
12
1
19
32
2
5
28
5
1
24
20
22
6
14
33
31
13
2
7
13
9
3
16
3
32
29
9
17
28
34

Артикул

Название

Примечание

Количество

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

5шт.

2

87310597

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

3

87564720

WASHER,0.78" ID x 1.25" OD x 0.07" Thk

4шт.

4

BN50594

BOLT,1/2"-13 x 1.75", Stainless

1шт.

5

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

2шт.

6

87343970

NUT,3/8"-16, G8, DOR

1шт.

7

BN52335

E-RING,1"

E-Type, 1", SST

4шт.

8

BN52336

CLIP

E-Type, 3/4", SST

2шт.

9

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

3шт.

10

BN55369

BOLT,1/2"-13 x 3", Stainless

1шт.

11

BN55372

BOLT,1/2"-13 x 3.25", Stainless

1шт.

12

87310189

BOLT,3/8"-16 x 3-1/2", G5

1шт.

13

87271751

CLAMP

Hi-Torque

4шт.

14

BN67861

PIN,26.42mm OD x 50.8mm L

Mid Boom Fold

2шт.

16

BN325679

DEFLECTOR

2.50, LH

4шт.

See Fig. 04-017

1шт.

17

BN314040

BOOM

LH 2.5 MID-70

1шт.

18

BN314042

BOOM

LH 2.5 Out-70

1шт.

19

BN323358

LINK

Breakaway Boom

1шт.

20

BN69294

ROLLER

Breakaway

1шт.

21

BN69295

SPACER

Breakaway

1шт.

22

BN69452

SPRING

Disc-1.5 X .515 X .07

14шт.

23

87265965

LINKAGE

Boom Fold, LH

1шт.

24

87265964

LINKAGE

Boom Fold, RH

1шт.

25

BN69466

SPACER

Boom Fold Links

1шт.

26

BN69467

STOP

breakaway

1шт.

27

BN69745

PIN,20.07mm OD x 146.05mm L

Outer Boom Fold

1шт.

28

BN25232

BUMPER

1.56" Dia - Urethane

2шт.

29

BN69951

CAP

Grease

5шт.

30

87310600

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

31

BN50595

WASHER,1/2", Stainless

2шт.

32

BN323356

ADJUSTER

Breakaway

1шт.

33

87343666

NUT

Hex, 1/2"-13, G5

2шт.

34

87310191

BOLT,1/2"-13 x 1-1/2", G5, DOR

2шт.

Выбрано товаров: 34
