Запчасти Case IH FLX810 (04-022) - BOOM GROUP, 2.5”, INNER, LH, 70’ Boom Group

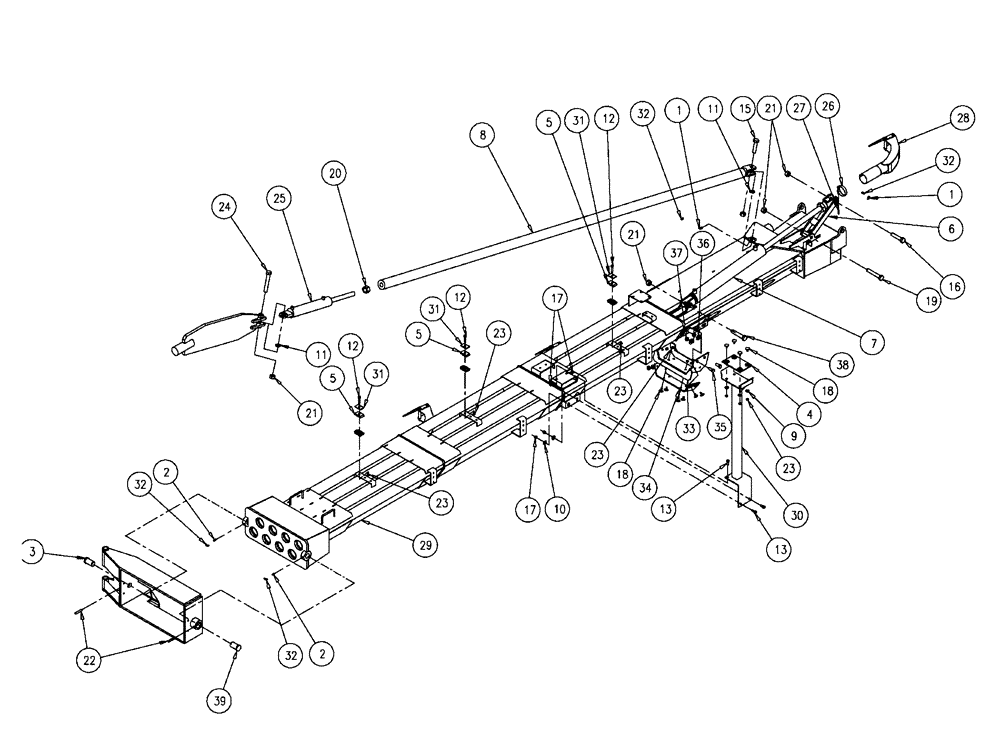

Схема запчастей Case IH FLX810 - (04-022) - BOOM GROUP, 2.5”, INNER, LH, 70’ Boom Group
13
32
21
20
18
12
32
39
11
38
15
18
23
12
33
3
32
5
37
11
23
31
16
21
35
31
32
2
22
6
8
17
1
1
25
26
2
23
23
36
5
7
30
24
5
13
12
10
34
17
19
9
21
31
4
27
28
29
23

Артикул

Название

Примечание

Количество

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

2шт.

2

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

2шт.

3

BN15256

PIN,31.75mm OD x 63.5mm L

1.25" Dia x 2.50"

1шт.

3

BN65661

PIN,31.75mm OD x 66.8mm L

1.50 DIA x 2.88

1шт.

4

BN315368

SLIDE

.19 X 6.25 X 4.13

1шт.

5

BN29779

CLAMP

Dual, 1/2" Tube

3шт.

6

87265962

ARM

Control Link

1шт.

7

87266458

CYLINDER,Double Acting, 31.75mm Rod, 503.68mm Stroke

Hydraulic, 3.00 x 19.63 x 1.25

1шт.

See Fig. 07-004

1шт.

8

BN315524

ARM

Suspension 70'

1шт.

9

BN50141

WASHER

5/16, FW, G5

4шт.

10

BN50146

WASHER,3/8", Stainless

2шт.

11

BN50178

WASHER

1.25 OD X .75 ID X 10 GA

2шт.

12

BN50239

BOLT,5/16"-18 x 1.75", Stainless

3шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

15

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

16

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

1шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

18

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

12шт.

19

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

20

425-1516

JAM NUT,Jam, 1"-14, G5

1шт.

21

280375

NUT,3/4"-10, GC

5шт.

22

BN55198

ROLL PIN

3/8 X 2 1/2, SS

2шт.

23

BN55361

NUT,5/16"-18, Nylon, Stainless

12шт.

24

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

25

87266447

CYLINDER,Double Acting, 25.4mm Rod, 254mm Stroke

Hydraulic, 2.5 x 10 x 1, Complete

1шт.

See Fig. 07-006

1шт.

26

87271751

CLAMP

Hi-Torque

4шт.

27

BN68086

CAP

RND, Rubber, .25 ID x 1.00

4шт.

28

BN325679

DEFLECTOR

2.50, LH

4шт.

See Fig. 04-017

1шт.

29

BN314038

BOOM

LH 2.5 INR-70

1шт.

30

BN315304

SUPPORT

tip-over, 70'

1шт.

31

BN311653

PLATE

Dual, Size 2

3шт.

32

BN69951

CAP

Grease

4шт.

33

BN315570

CRADLE

Boom Holder

1шт.

34

BN315572

CRADLE

Slide, Boom Holder 70'

1шт.

35

BN50679

BOLT,1/2-13 X 1.25", Stainless

4шт.

36

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

4шт.

37

86992215

LOCK NUT,1/2"-13, GC

4шт.

38

280210

BOLT,Hex, 3/4"-10 x 4", G5

1шт.

Выбрано товаров: 41
