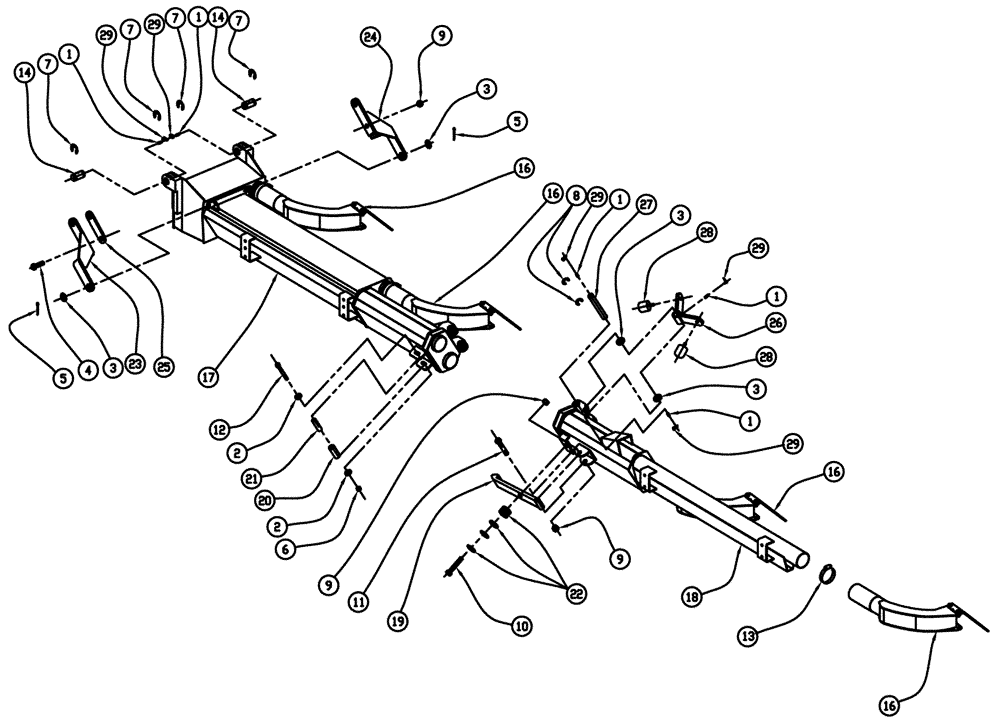

Запчасти Case IH FLX810 (04-016) - BOOM GROUP, 2.5", 60, OUTER, LH Boom Group

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

5шт.

2

87310597

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

3

87564720

WASHER,0.78" ID x 1.25" OD x 0.07" Thk

4шт.

4

BN50594

BOLT,1/2"-13 x 1.75", Stainless

1шт.

5

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

2шт.

6

87343970

NUT,3/8"-16, G8, DOR

1шт.

7

BN52335

E-RING,1"

E-Type, 1", SST

4шт.

8

BN52336

CLIP

E-Type, 3/4", SST

2шт.

9

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

3шт.

10

BN55369

BOLT,1/2"-13 x 3", Stainless

1шт.

11

BN55372

BOLT,1/2"-13 x 3.25", Stainless

1шт.

12

87310189

BOLT,3/8"-16 x 3-1/2", G5

1шт.

13

87271751

CLAMP

Hi-Torque

4шт.

14

BN67861

PIN,26.42mm OD x 50.8mm L

Mid Boom Fold

2шт.

16

BN325679

DEFLECTOR

2.5, LH

4шт.

See Fig. 04-017

1шт.

17

BN69196

BOOM

MID, 2.50, LH

1шт.

18

BN69198

BOOM

Outer, 2.50, LH

1шт.

19

BN69290

LINK

Breakaway

1шт.

20

BN69294

ROLLER

Breakaway

1шт.

21

BN69295

SPACER

Breakaway

1шт.

22

BN69452

SPRING

Disc-1.5 X .515 X .07

14шт.

23

87265964

LINKAGE

Boom Fold, RH

1шт.

24

87265965

LINKAGE

Boom Fold, LH

1шт.

25

BN69466

SPACER

Boom Fold Links

1шт.

26

BN69467

STOP

breakaway

1шт.

27

BN69745

PIN,20.07mm OD x 146.05mm L

Outer Boom Fold

1шт.

28

BN25232

BUMPER

1.56" Dia - Urethane

2шт.

29

BN69951

CAP

Grease

5шт.
