Запчасти Case IH FLX810 (04-012) - BOOM GROUP, 2.5”, 60’, INNER, RH Boom Group

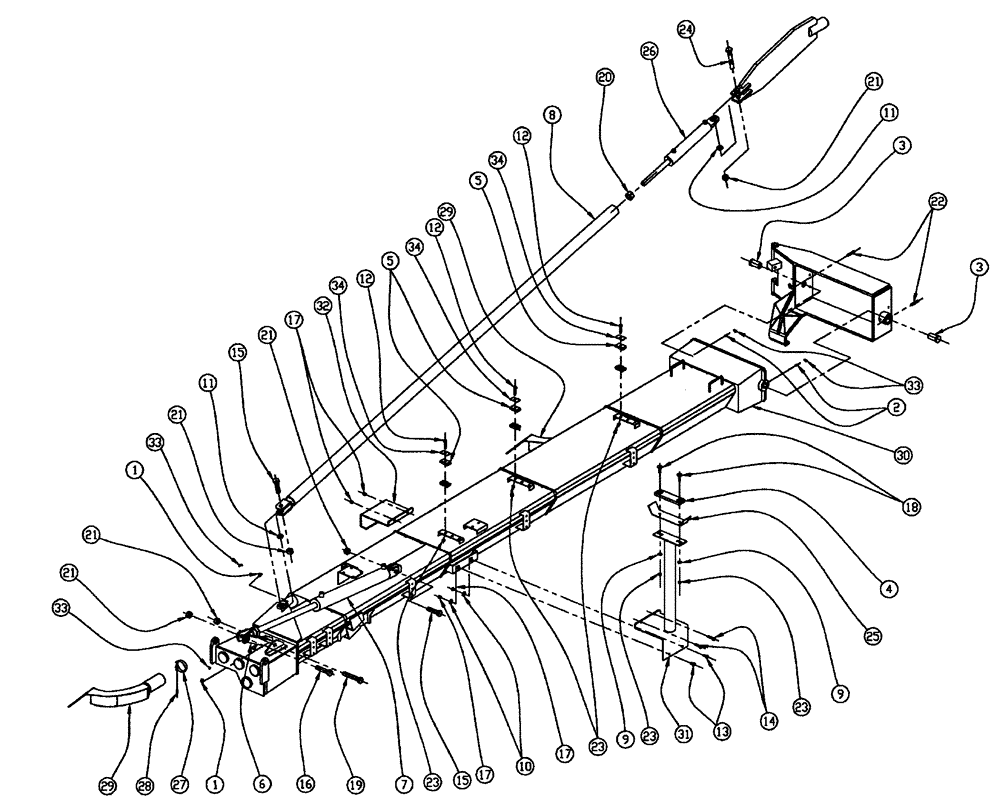

Схема запчастей Case IH FLX810 - (04-012) - BOOM GROUP, 2.5”, 60’, INNER, RH Boom Group
33
11
17
9
12
1
25
33
6
31
14
34
21
30
1
15
15
11
34
5
23
4
28
8
21
27
3
23
2
12
32
12
20
21
21
3
34
10
21
7
33
29
24
19
22
23
29
9
13
26
5
16
17
17
18
23

Артикул

Название

Примечание

Количество

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

2шт.

2

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

2шт.

3

BN15256

PIN,31.75mm OD x 63.5mm L

1.25" Dia x 2.50"

2шт.

BN65661

PIN,31.75mm OD x 66.8mm L

1.50 DIA. x 2.88

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

1шт.

5

BN29779

CLAMP

Dual, 1/2" Tube

3шт.

6

BN35558

ARM

Control Link

1шт.

7

87266445

CYLINDER,Double Acting, 31.75mm Rod, 508mm Stroke

Hydraulic, 2.5 x 20 x 1.25, Complete

1шт.

See Fig. 07-003

1шт.

8

BN35892

ARM

Suspension

1шт.

9

BN50141

WASHER

5/16, FW, G5

2шт.

10

BN50146

WASHER,3/8", Stainless

2шт.

11

BN50178

WASHER

1.25 OD x.75 ID x 10 GA

2шт.

12

BN50239

BOLT,5/16"-18 x 1.75", Stainless

3шт.

13

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

14

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

2шт.

15

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

16

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

1шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

18

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

2шт.

19

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

20

425-1516

JAM NUT,Jam, 1"-14, G5

1шт.

21

280375

NUT,3/4"-10, GC

5шт.

22

BN55198

ROLL PIN

3/8 X 2 1/2, SS

2шт.

23

BN55361

NUT,5/16"-18, Nylon, Stainless

3шт.

24

87310197

BOLT,3/4"-10 x 5", G5, DOR

1шт.

25

BN65473

SUPPORT

Boom Tip

1шт.

26

87266446

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Hydraulic, 2.5 x 16 x 1.25, Complete

1шт.

See Fig. 07-006

1шт.

26

87266446R

REMAN-HYD CYLINDER

FLX810 FLEX-AIR APPLICATOR, 2.5”, 60’, INNER, RH, Hydraulic, 2.5 x 16 x 1.25, Complete (10/03-8/09)

1шт.

26

87266446C

CORE-HYD CYLINDER

Return Number

1шт.

27

87271751

CLAMP

Hi-Torque

4шт.

28

BN68086

CAP

RND, Rubber, .25 ID x 1.00

4шт.

29

BN325678

DEFLECTOR

2.5, RH

4шт.

See Fig. 04-015

1шт.

30

BN69193

BOOM

Inner, 2.50, RH

1шт.

31

BN69278

SUPPORT

Tip-Over Support W/M

1шт.

32

BN69280

SUPPORT

Bracket, Tip-Over Support

1шт.

33

BN69951

CAP

Grease

4шт.

Выбрано товаров: 40
