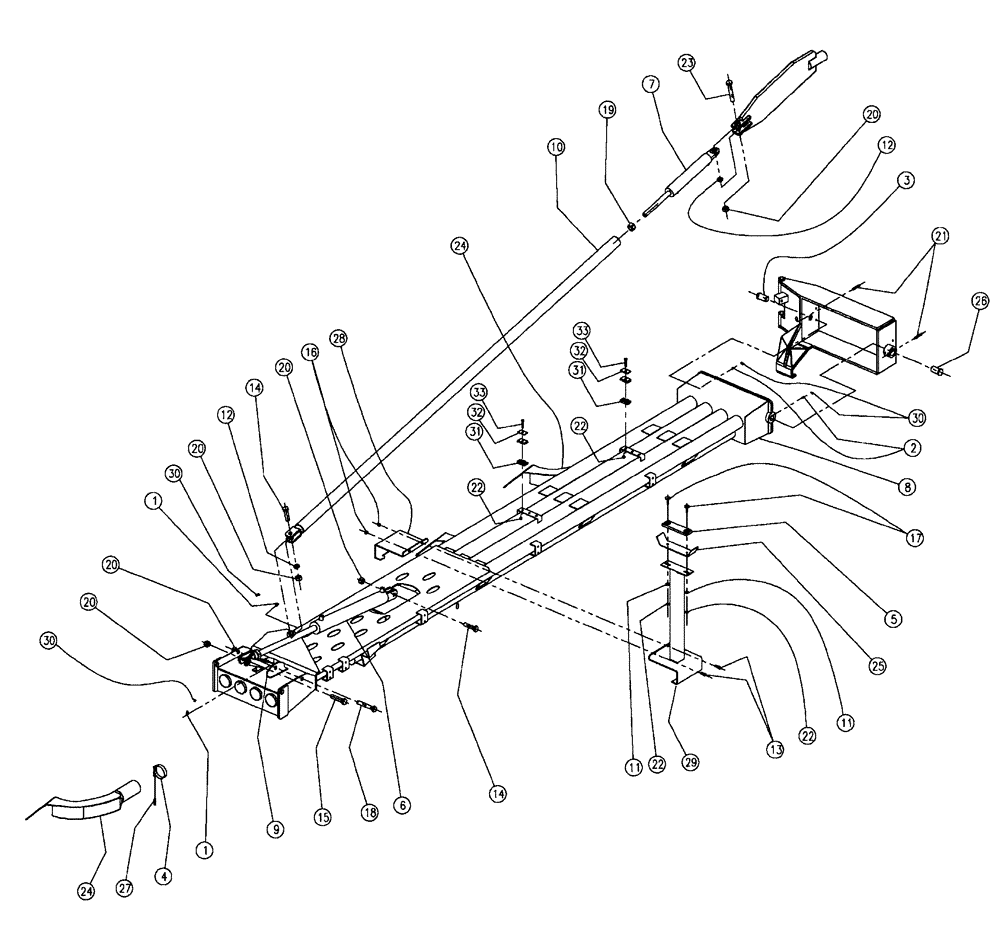

Запчасти Case IH FLX810 (04-005) - BOOM GROUP, 3.0”, 60’, INNER, RH Boom Group

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

2шт.

2

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

2шт.

3

BN15256

PIN,31.75mm OD x 63.5mm L

1.25" Dia x 2.50"

1шт.

4

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", SS, T-Bolt

4шт.

5

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

1шт.

6

87266445

CYLINDER,Double Acting, 31.75mm Rod, 508mm Stroke

Hydraulic, 2.5 x 20 x 1.25, Complete

1шт.

See Fig. 07-003

1шт.

7

87266446

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Hydraulic, 2.5 x 16 x 1.25, Complete

1шт.

See Fig. 07-006

1шт.

7

87266446R

REMAN-HYD CYLINDER

FLX810 FLEX-AIR APPLICATOR, 3.0”, 60’, INNER, RH, Hydraulic, 2.5 x 16 x 1.25, Complete (10/03-8/09)

1шт.

7

87266446C

CORE-HYD CYLINDER

Return Number

1шт.

8

BN35534

BOOM

Inner RH

1шт.

9

BN35558

ARM

Control Link

1шт.

10

BN35892

ARM

Suspension

1шт.

11

BN50142

WASHER,5/16", Stainless Steel

2шт.

12

BN50178

WASHER

1.25 OD x .75 ID x 10 GA

2шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

14

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

15

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

1шт.

16

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

17

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

2шт.

18

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

19

425-1516

JAM NUT,Jam, 1"-14, G5

1шт.

20

280375

NUT,3/4"-10, GC

5шт.

21

BN55198

ROLL PIN

3/8 X 2 1/2, SS

2шт.

22

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

23

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

5шт.

24

344018A1

DEFLECTOR

RH

4шт.

25

BN65473

SUPPORT

Boom Tip

1шт.

26

BN65661

PIN,31.75mm OD x 66.8mm L

1.50 DIA. x 2.88

1шт.

27

BN68086

CAP

RND, Rubber, .25 ID x 1.00

4шт.

28

BN68662

BASE

Boom Tip Support

1шт.

29

BN68663

SUPPORT

Boom Tip

1шт.

30

BN69951

CAP

Grease

4шт.

31

BN29779

CLAMP

Dual, 1/2" Tube

2шт.

32

BN311653

PLATE

Top Plate, Dual, Size 2

2шт.

33

BN50239

BOLT,5/16"-18 x 1.75", Stainless

2шт.
