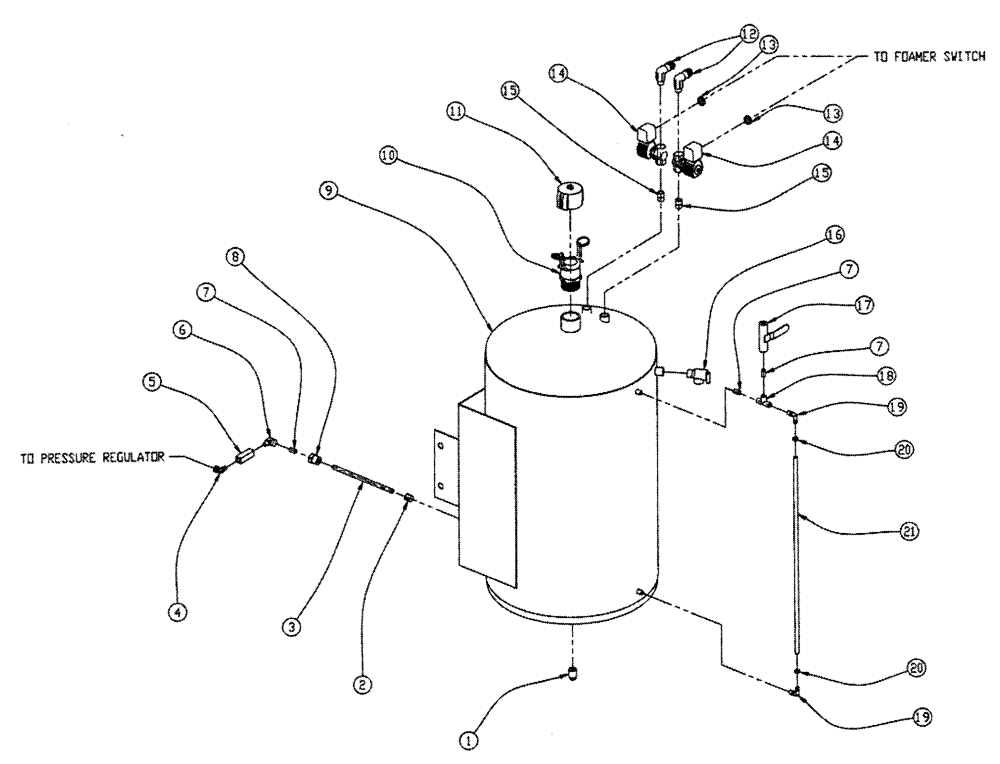

Запчасти Case IH FLEX-AIR (11-003) - FOAM TANK ASSY, FLEX (16) - FOAM MARKER

1

BN1666259

PLUG

Pipe 3/4 SQ HD

1шт.

2

BN2396381

CAP

Threaded CO3261 1/4

1шт.

3

BN8094016

TUBE

Foam Marker

1шт.

4

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

5

BN2292256

CHECK VALVE

C400S Parker

1шт.

6

BN2290503

FITTING

2104-4-4

1шт.

7

BN1420320

LUBE NIPPLE

LUBRICATOR S80 1/4 All Thread

3шт.

8

BN305120

BUSHING

Red, Rework 305119

1шт.

9

BN8194120

TANK

Foam 65 GL

1шт.

10

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

F 2" Poly

1шт.

11

BN2393383

CAP

Coupler 2" Dust Poly

1шт.

12

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

2шт.

13

BN2290745

GROMMET

2864 (5/8" Hole)

2шт.

14

BN2392269

SOLENOID VALVE

A414P12DC

2шт.

15

BN1420061

LUBE NIPPLE

LUBRICATOR 1/2 X 1-1/8 Close

2шт.

16

BN2392285

VALVE PRESSURE RELIE

Conbraco

1шт.

17

BN2298246

HYDRAULIC VALVE

Ball 1/4" SS

1шт.

18

BN2011315

TEE

Pipe 1/4" SS

1шт.

19

BN325317

FITTING

Hose Barb, 1/4" MPT x 3/8" 90º

2шт.

20

BN76094

HOSE CLAMP

SS #M4

2шт.

21

BN2395017

PLASTIC-RUBBER TUBE

Clear Vinyl 3/8 IDX

3.2шт.
