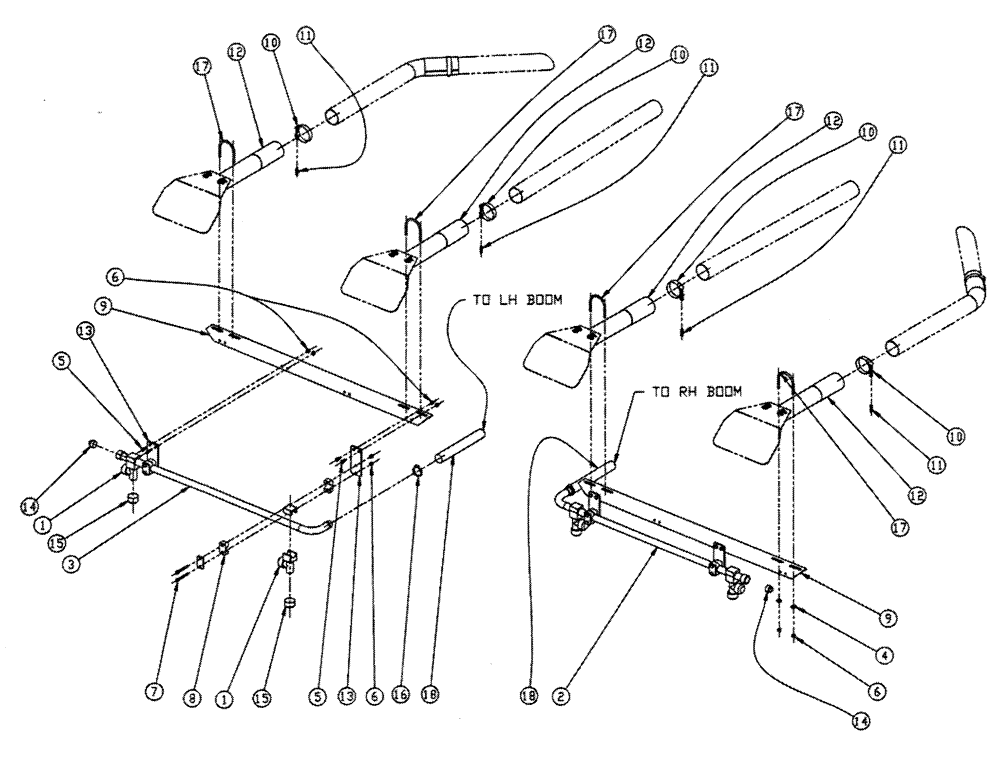

Запчасти Case IH FLEX-AIR (12-015) - BOOM PLUMBING, 2.5, MID, R TUBE Wet Kit

1

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

4шт.

2

BN300300

BAR

Spray, Midship, RH

1шт.

3

BN300301

BAR

Spray, Midship, LH

1шт.

4

BN50138

WASHER,1/4", SS

8шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

6

BN55359

LOCK NUT,1/4"-20, SS

24шт.

7

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

8шт.

8

BN65324

CLAMP

1" OD, Poly

4шт.

9

BN65518

Bracket, Wet Boom, Rear

2шт.

10

87271751

CLAMP

Hi-Torque

4шт.

11

BN68086

CAP

Round, Rubber, .25 ID x 1.00

4шт.

12

BN68393

TUBE

EXT, 14.50, 2.50

4шт.

13

BN68986

Wet Boom, Rear

4шт.

14

BN73553

PLUG

3/4" NPT, Poly

2шт.

15

BN74619

CAP

with gasket tee jet black

4шт.

16

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

17

87266747

U-BOLT

1/4"-20 x 2.5 ID x 3"

4шт.

18

BN66867

1" EPDM X 255.0"

2шт.
