(12-014) - BOOM PLUMBING, 2.5, LH, INNER

Запчасти Case IH FLEX-AIR (12-014) - BOOM PLUMBING, 2.5, LH, INNER Wet Kit

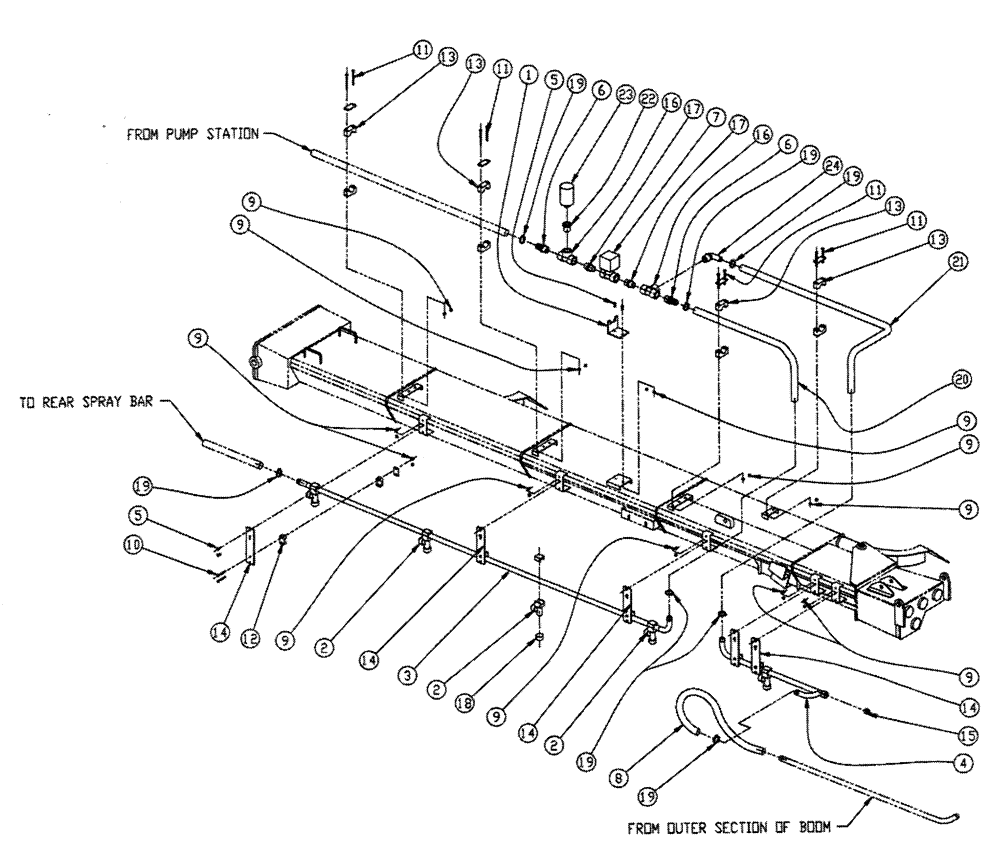

Схема запчастей Case IH FLEX-AIR - (12-014) - BOOM PLUMBING, 2.5, LH, INNER Wet Kit
11
13
17
7
9
4
14
6
5
2
20
11
9
10
19
9
8
3
19
6
13
17
18
2
9
14
9
15
11
9
22
5
1
16
24
23
2
9
9
13
19
9
11
14
13
14
21
16
19
19
12
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

2

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

5шт.

3

BN300290

BAR

Spray, Inner

1шт.

4

BN300319

BAR

Spray, Inner, End, LH

1шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

12шт.

6

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

7

BN53495

VALVE

PP - Ball (2-Way) ELE

1шт.

8

BN53912

HOSE

1" ID EPDM x 38"

1шт.

9

BN55359

LOCK NUT,1/4"-20, SS

30шт.

10

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

10шт.

11

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

8шт.

12

BN65324

CLAMP

1" OD, Poly

5шт.

13

BN67494

CLAMP

Single, 1.5 DIA

4шт.

14

BN68981

BRACKET

Spray Bar

5шт.

15

BN73553

PLUG

3/4" NPT, Poly

1шт.

16

BN73629

TEE

1" Poly Pipe

2шт.

17

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

18

BN74619

CAP

with gasket tee jet black

5шт.

19

BN75990

HOSE CLAMP

#16, Stainless Steel

7шт.

20

BN53756

HOSE,42.00"

1шт.

21

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

1шт.

22

BN53665

BUSHING

1" x .75 Poly

1шт.

23

BN98078

SENSOR

Pressure Transducer

1шт.

24

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.
