(12-013) - BOOM PLUMBING, 2.5, RH, INNER

Запчасти Case IH FLEX-AIR (12-013) - BOOM PLUMBING, 2.5, RH, INNER Wet Kit

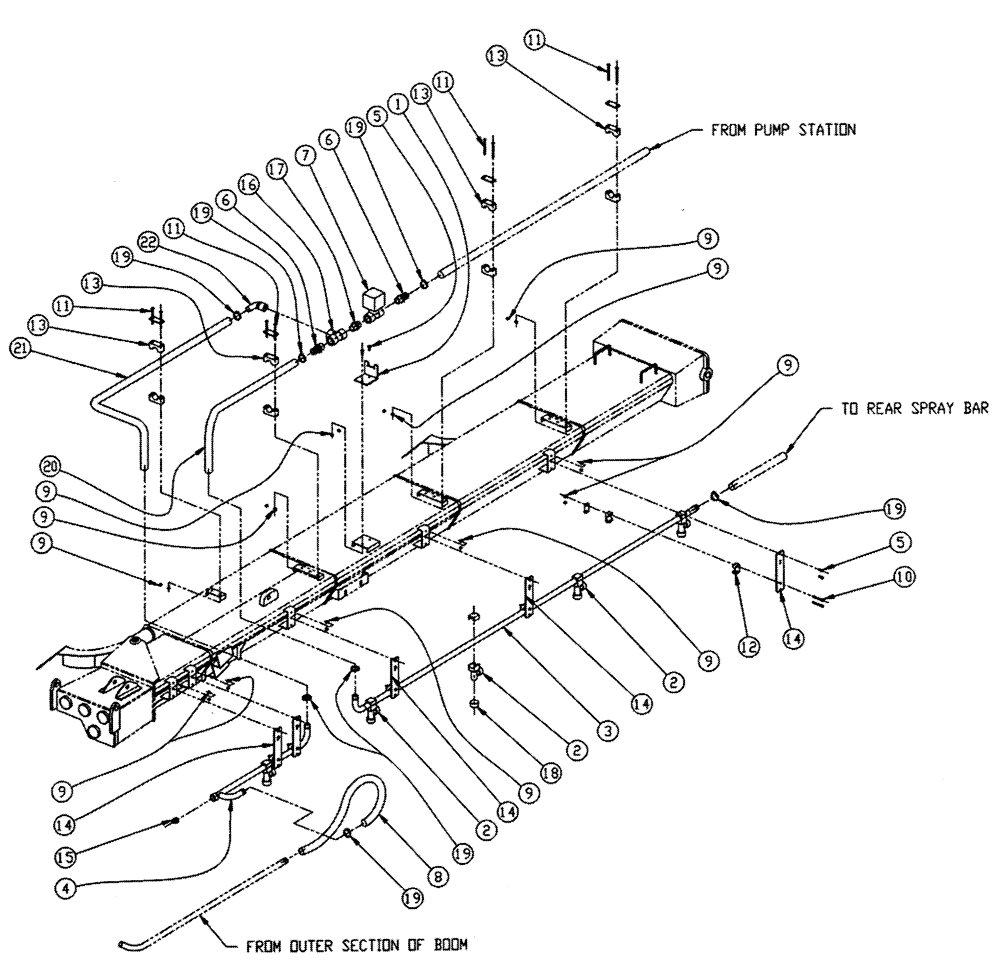

Схема запчастей Case IH FLEX-AIR - (12-013) - BOOM PLUMBING, 2.5, RH, INNER Wet Kit
20
21
13
5
9
11
10
13
4
2
9
11
14
9
11
7
15
2
19
9
9
1
2
17
6
19
22
19
5
13
14
19
13
16
14
6
9
3
9
9
14
12
8
19
11
9
19
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

2

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

5шт.

3

BN300290

BAR

Spray, Inner

1шт.

4

BN300291

BAR

Spray, Inner, End, RH

1шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

12шт.

6

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

7

BN53495

VALVE

PP - Ball (2-Way) ELE

1шт.

8

BN53912

HOSE

1" ID EPDM x 38"

1шт.

9

BN55359

LOCK NUT,1/4"-20, SS

30шт.

10

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

10шт.

11

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

8шт.

12

BN65324

CLAMP

1" OD, Poly

5шт.

13

BN67494

CLAMP

Single, 1.5 DIA

4шт.

14

BN68981

BRACKET

Spray Bar

5шт.

15

BN73553

PLUG

3/4" NPT, Poly

1шт.

16

BN73629

TEE

1" Poly Pipe

1шт.

17

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

18

BN74619

CAP

with gasket tee jet black

5шт.

19

BN75990

HOSE CLAMP

#16, Stainless Steel

7шт.

20

BN53756

HOSE,42.00"

1шт.

21

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

1шт.

22

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.
