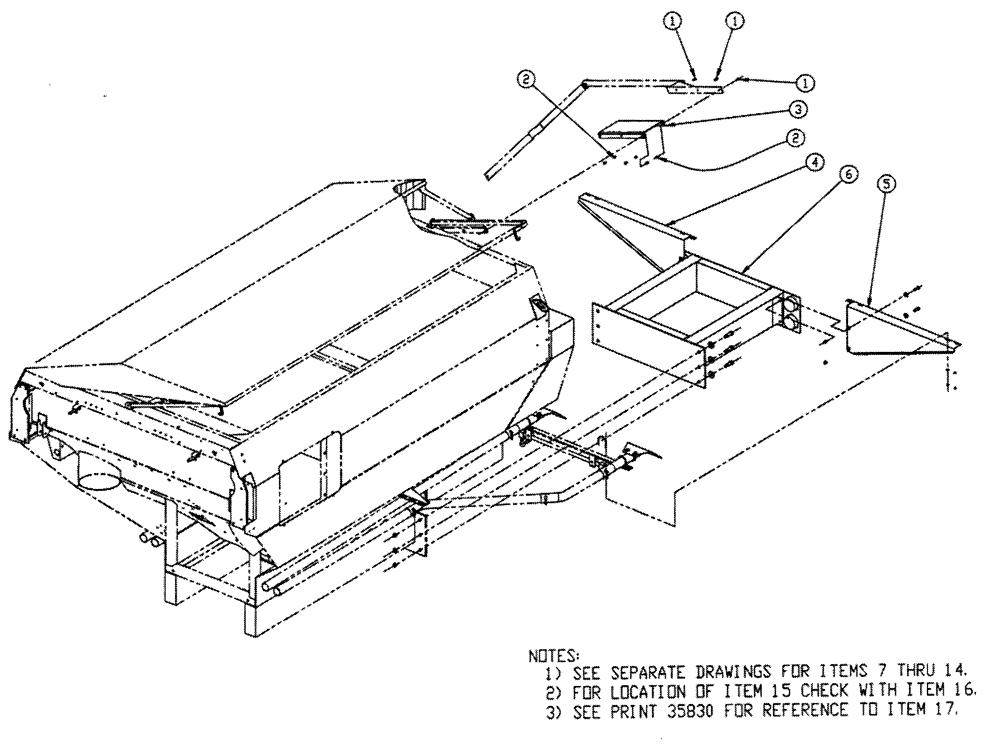

Запчасти Case IH FLEX-AIR (12-011) - WET KIT, 4 WL MID, 2.5 Wet Kit

1

BN50367

BOLT

3/8"-16 x 1", G5

3шт.

2

BN50756

NUT

3/8-16, NLN, G5

3шт.

3

BN66081

EXTENSION

Fliptop Handle

1шт.

4

BN66936

Rear Tubes, Wet, RH

1шт.

5

BN66937

Rear Tubes, Wet, LH

1шт.

6

BN8171034

FRAMEWORK

Assembly, Extension 40"

1шт.

7

BN300287

Boom Plumbing, 2.5, RH, Inner

1шт.

8

BN300288

Boom Plumbing, 2.5, RH, Inner

1шт.

9

BN300289

Boom Plumbing, 2.5, Mid, R Tube

1шт.

10

BN300334

Boom Plumbing, 2.5, RH, Outer

1шт.

11

BN300335

Boom Plumbing, 2.5, LH, Outer

1шт.

12

BN65760

Hydraulic Group, Wet Kit

1шт.

13

BN66670

Wet Kit, 4 Wheel, Mid

1шт.

14

BN67449

Pump Station Assy, Flex Air

1шт.

15

BN69521

DECAL

Flex Wet Tank, 500

1шт.

16

BN69522

Location Drawing, Decal, Wet

1шт.

17

BN65759

Electrical Group, Wet Kit

1шт.
