Запчасти Case IH FLEX-AIR (12-003) - BOOM PLUMBING, WET, 4 WL, MID Wet Kit

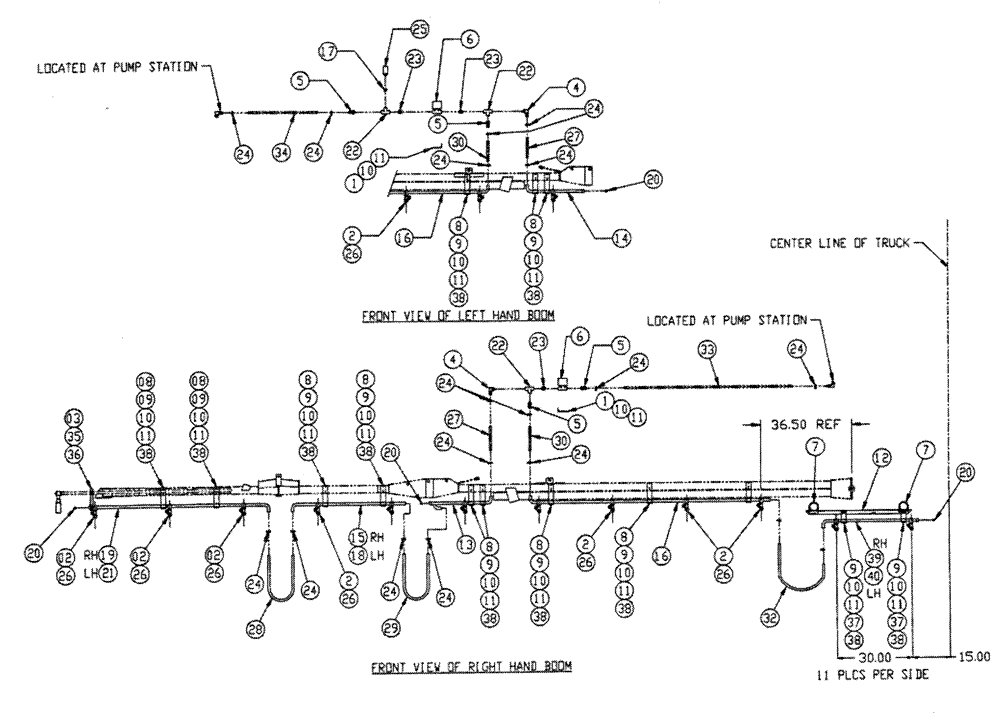

Схема запчастей Case IH FLEX-AIR - (12-003) - BOOM PLUMBING, WET, 4 WL, MID Wet Kit
10
37
15
11
21
10
5
24
24
20
11
16
32
11
12
2
9
27
26
38
30
11
11
14
2
4
8
17
3
26
26
34
19
8
10
25
36
9
10
10
2
28
9
7
8
9
13
9
10
37
30
2
23
10
38
2
9
24
38
11
11
10
20
38
10
8
24
24
9
11
24
24
9
20
22
24
26
16
38
29
6
9
38
10
18
24
24
1
5
4
9
35
8
24
38
5
8
8
27
11
38
10
22
2
2
11
8
9
5
40
23
24
1
38
38
10
11
23
39
11
6
10
22
7
26
24
8
11
26
38
20
24
33
26

Артикул

Название

Примечание

Количество

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

2шт.

2

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

24шт.

3

BN34458

U-BOLT

1/4" x 1.12 ID CR RD

2шт.

4

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

5

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

6

BN53495

VALVE

PP - Ball (2-Way) ELE

2шт.

7

BN68492

U-BOLT

3/8-16 UNC X 3, SS

4шт.

8

BN68981

BRACKET

Spray Bar

18шт.

9

BN65324

CLAMP

1" OD, Poly

22шт.

10

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

40шт.

11

BN55359

LOCK NUT,1/4"-20, SS

84шт.

12

BN65518

Bracket, Wet Boom, Rear

2шт.

13

BN300291

BAR

Spray, Inner, End, RH

1шт.

14

BN300319

BAR

Spray, Inner, End, LH

1шт.

15

BN300292

BAR

Spray, Mid, RH

1шт.

16

BN300290

BAR

Spray, Inner

2шт.

17

BN53665

BUSHING

1" x .75 Poly

1шт.

18

BN300320

BAR

Spray, Mid, LH

1шт.

19

BN300293

BAR

Spray, Outer, RH

1шт.

20

BN73553

PLUG

3/4" NPT, Poly

6шт.

21

BN300321

BAR

Spray, Outer, LH

1шт.

22

BN73629

TEE

1" Poly Pipe

3шт.

23

BN73648

NIPPLE

1" Short Poly Pipe

3шт.

24

BN75990

HOSE CLAMP

#16, Stainless Steel

24шт.

25

BN98078

SENSOR

Pressure Transducer

1шт.

26

BN74619

CAP

with gasket tee jet black

24шт.

27

BN66856

HOSE

1" EPDM x 25.00"

2шт.

28

BN66858

HOSE

1" EPDM x 31.00"

2шт.

29

BN53912

HOSE

1" ID EPDM x 38"

2шт.

30

BN66859

HOSE

1" EPDM X 23.00"

2шт.

32

BN66867

1" EPDM X 255.0"

2шт.

33

BN67323

Hose 1" EPDM X 270.00"

1шт.

34

BN67324

1" EPDM X 215.00"

1шт.

35

BN67983

SUPPORT

Outer Spray Bar

2шт.

36

BN68011

U-BOLT

BOLT "U" 1/4-20 UNC, 1" Pipe

2шт.

37

BN68986

Wet Boom, R

4шт.

38

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

44шт.

39

BN300300

BAR

Spray, Midship, RH

1шт.

40

BN300301

BAR

Spray, Midship, LH

1шт.

Выбрано товаров: 39
