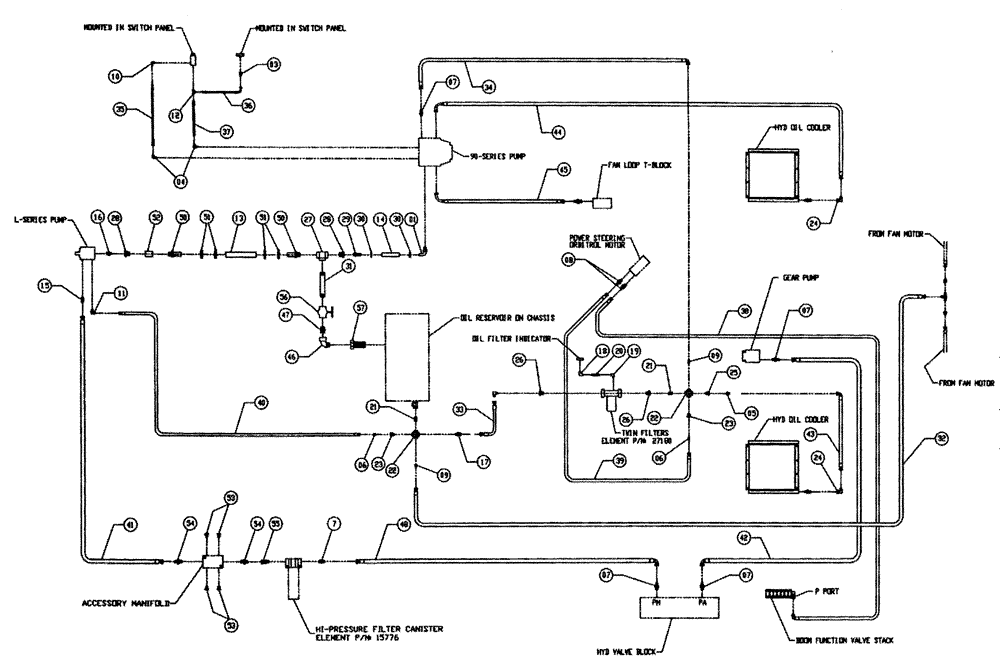

Запчасти Case IH FLEX-AIR (06-010) - FITTING GROUP, TITAN 3 WL, MID Hydraulic Plumbing

1

BN21242

FITTING

90º 1.62" O-Ring x 1.25

1шт.

3

BN21424

ADAPTER

Female, PI, 37º, Flare

1шт.

4

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

2шт.

5

BN441004

FITTING

Pipe 37 Flare

1шт.

6

BN441006

ADAPTER

1/2 NPT-8 JIC

2шт.

7

BN444001

FITTING

Adaptor - 37 Flare 12 - 12

5шт.

8

BN444004

FITTING

O-Ring 37 Flare

2шт.

9

BN51531

1&1/4 NPTF x 12 JIC

2шт.

10

BN51591

ELBOW

90° - O-Ring 37 FL 7/16

1шт.

11

BN53594

FITTING

90 Degree, OR X 37 JIC

1шт.

12

BN55219

ADAPTER

T, 40 RB - 4 JIC

1шт.

13

BN67536

Hose, 2 x 47

1шт.

14

BN66924

1-1/4 X 26.00

1шт.

15

BN55313

ADAPTER

200 RBP - 12 JIC

1шт.

16

BN55324

ADAPTER

1.25 NPTM - 20 ORB M

1шт.

17

BN55325

ADAPTER

1 1/4" NPT x 1 5/8"-12 JIC

1шт.

18

BN72027

1/8 X 90 Degree BL

1шт.

19

BN72028

ELBOW

1/8 x 90º street

1шт.

20

BN72033

Nipple, 1/8" NPT x 4.0

1шт.

21

BN72330

LUBE NIPPLE

LUBRICATOR 1&1/4 NPT Close BL

2шт.

22

BN72343

FITTING

Cross, 1-1/4" NPT

2шт.

23

BN72348

1&1/4 X 1/2 Black

2шт.

24

BN55350

ADAPTER

16 JIC, FEW Swivel 90

2шт.

25

BN72350

BR, 1&1/4 X 1 (11-1/2)

1шт.

26

BN72411

Bush-Red 1&1/2" X 1&1/4

2шт.

27

BN72461

TEE

2 In Black

1шт.

28

BN72470

FITTING

2 X 1&1/4 (11-1/2)

2шт.

29

BN55346

1.25 NPT X 1.25 HS

1шт.

30

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

31

BN65710

2 NPT X 18.00, Thread

1шт.

32

BN55240

HOSE

3/4 X 90, 12 JIC - 12 JIC

1шт.

33

BN55241

HOSE

1.25 X 23, 20 JIC - 20 JIC

1шт.

34

BN66918

HOSE

3/4 X 57, 12 JIC - 12 JIC

1шт.

35

BN66919

HOSE

1/4 X 108, 4 JIC - 4 JIC

1шт.

36

BN55269

HOSE

1/4 X 18, 4 JIC - 4 JIC

1шт.

37

BN300774

1/4 X 160, 4 JIC - 4 JIC

1шт.

38

BN55287

HOSE

1/2 X 142, 8 JIC-8 JIC

1шт.

39

BN55299

HOSE

1/2 X 102, 8 JIC - 8 JIC

1шт.

40

BN67404

HOSE

1/2 X 91, 8 JIC-8 JIC

1шт.

41

BN55375

3/4 X 114, 12 JIC - 12 JIC

1шт.

42

BN55321

HOSE

3/4 X 124, 12 JIC - 12 JIC

1шт.

43

BN66620

Hose, 1 X 176, 16 JIC - 16 JIC

1шт.

44

BN66921

HOSE

1 X 160, 16 JIC - 16 SP FL

1шт.

45

BN66922

HOSE

1 X 78, 16 JIC - 16 SP FL

1шт.

46

BN72481

2 NPT X 90 Street

1шт.

47

BN72450

LUBE NIPPLE

LUBRICATOR 2 X close BI

1шт.

48

BN55376

3/4 X 50, 12 JIC - 12 JIC

1шт.

50

BN72473

HOSE

Barb - 2" NPT x 2" Hose ID

2шт.

51

BN76020

HOSE CLAMP

1 & 1/2 - 2 Hose SS

4шт.

52

BN72463

COUPLING

2" Full BL

1шт.

53

BN21243

PLUG

Hex, 7/8"-14, O-Ring

4шт.

54

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

2шт.

55

BN57224

FITTING

1-1/16 - 12 OR, JIC

1шт.

56

BN2201123

Gate 2" 125 LB

1шт.

57

BN25877

FILTER STRAINER

In-Line 50 GPM 100 Mesh

1шт.
