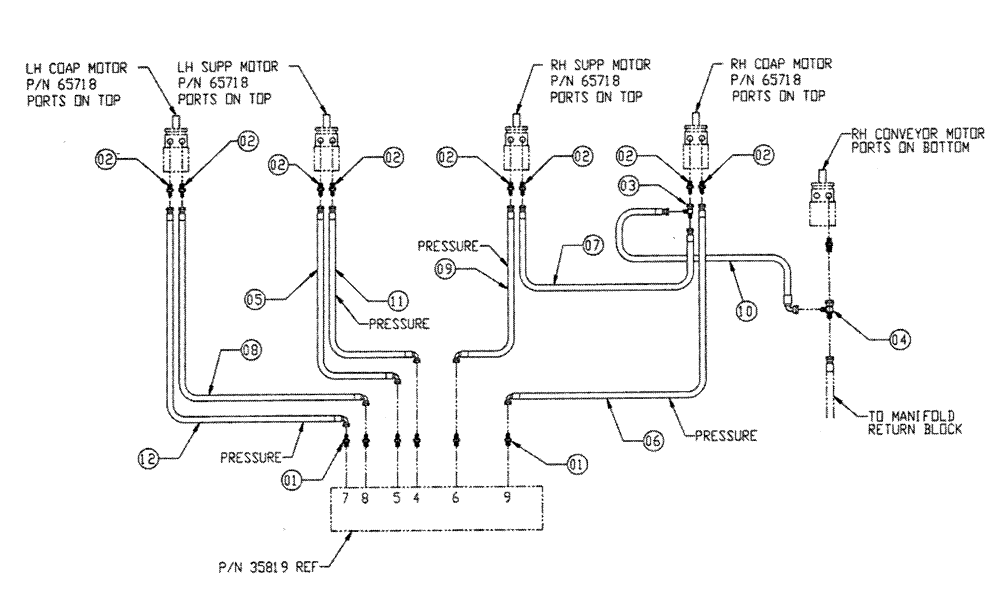

Запчасти Case IH FLEX-AIR (06-002) - TRIPLE BIN FITTING GROUP Hydraulic Plumbing

1

BN444004

FITTING

O-RING 37 FLARE

6шт.

2

BN444008

FITTING

37° Flare 10 - 08

8шт.

3

BN53452

TEE

JIC - 3/4 - 16, ML - FML

1шт.

4

BN53573

TEE

JIC - 1-1/16, ML - FML

1шт.

5

BN55271

1/2 X 98, 8 JIC - 8 JIC

1шт.

6

BN55272

1/2 X 152, 8 JIC - 8 JIC

1шт.

7

BN55273

1/2 X 17, 8 JIC - 8 JIC

1шт.

8

BN55274

hose, 1/2 X 103, 8 JIC - 8 JIC

1шт.

9

BN55275

1/2 X 141, 8 JIC - 8 JIC

1шт.

10

BN55276

1/2 X 39, 8 JIC - 12 JIC

1шт.

11

BN68087

Hose, 1/2 x 102, 8 JIC - 8 JIC

1шт.

12

BN68088

1/2 X 108, 8 JIC - 8 JIC

1шт.
