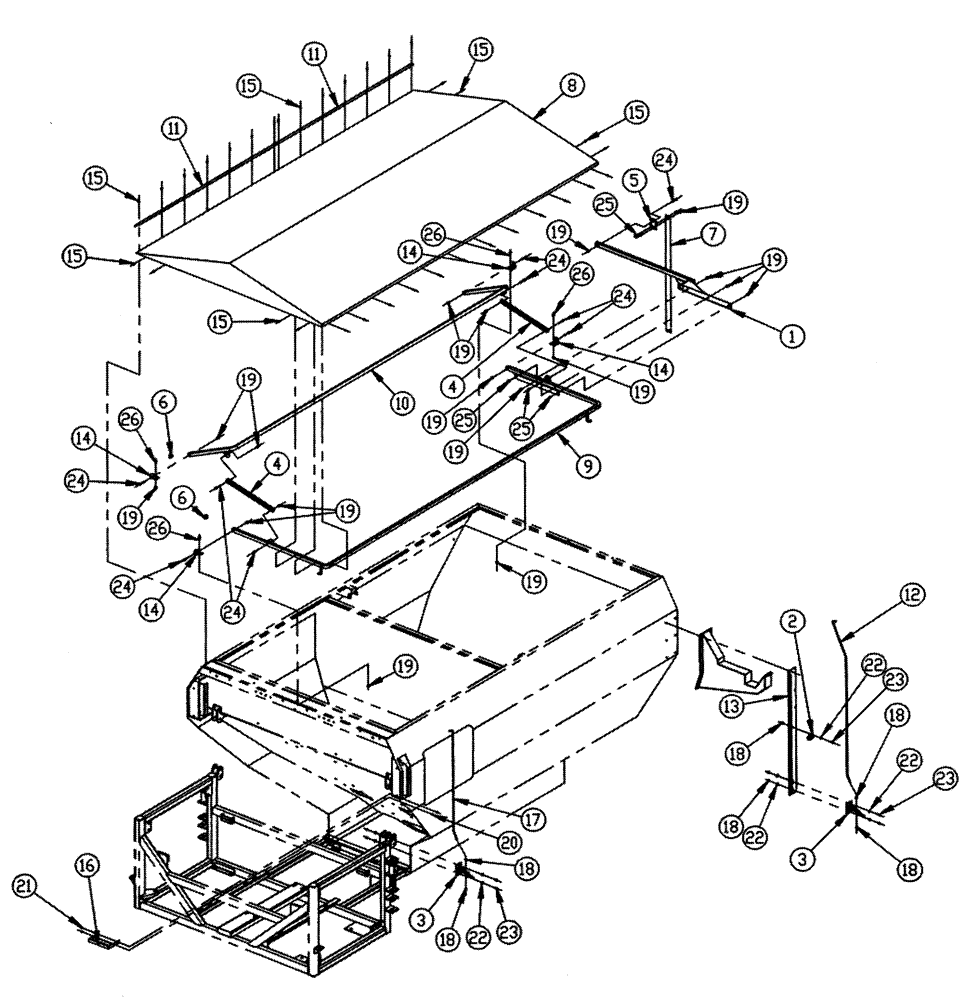

Запчасти Case IH FLEX-AIR (05-002) - FLIP TOP GROUP, MID Extensions & Mount Group

1

BN5747

Handle, Flip Top MW

1шт.

2

BN52035

CLAMP

2" Dia., Vinyl Coated

1шт.

3

BN5777

Clamp - Lock Mechanical - Fliptop

2шт.

4

BN15214

LINK

Fliptop

2шт.

5

BN32816

BRACKET

10 GA 304 2. X 3.75

1шт.

6

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

7

BN32836

STRAP

Pull - M8 M15 Fliptop

1шт.

8

BN35732

TARPULIN

Fliptop, Yellow

1шт.

9

BN35903

FRAME

Outside - Fliptop

1шт.

10

BN35906

FRAME

Inside - Fliptop

1шт.

11

BN35908

SUPPORT

Tarp - Outside

2шт.

12

BN67118

ROD

Fliptop, Side

1шт.

13

BN66075

SUPPORT

Fliptop Rod, Side

1шт.

14

BN37345

PIVOT

10 GA 304 2.0 X 3.37

4шт.

15

BN54127

RIVET

Nylon Drive - Not Black

34шт.

16

BN63534

GUIDE

Fliptop Rod

1шт.

17

BN67117

ROD

Lock - 38" Formed

1шт.

18

BN55361

NUT,5/16"-18, Nylon, Stainless

9шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

18шт.

20

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

21

BN55359

LOCK NUT,1/4"-20, SS

2шт.

22

BN50142

WASHER,5/16", Stainless Steel

9шт.

23

BN50476

BOLT,5/16"-18 x 0.75", Stainless

5шт.

24

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

9шт.

25

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

5шт.

26

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

4шт.
