(09-002) - HYDRO MOTOR, ROSS MG12

Запчасти Case IH FLEX-AIR (09-002) - HYDRO MOTOR, ROSS MG12 Drivelines

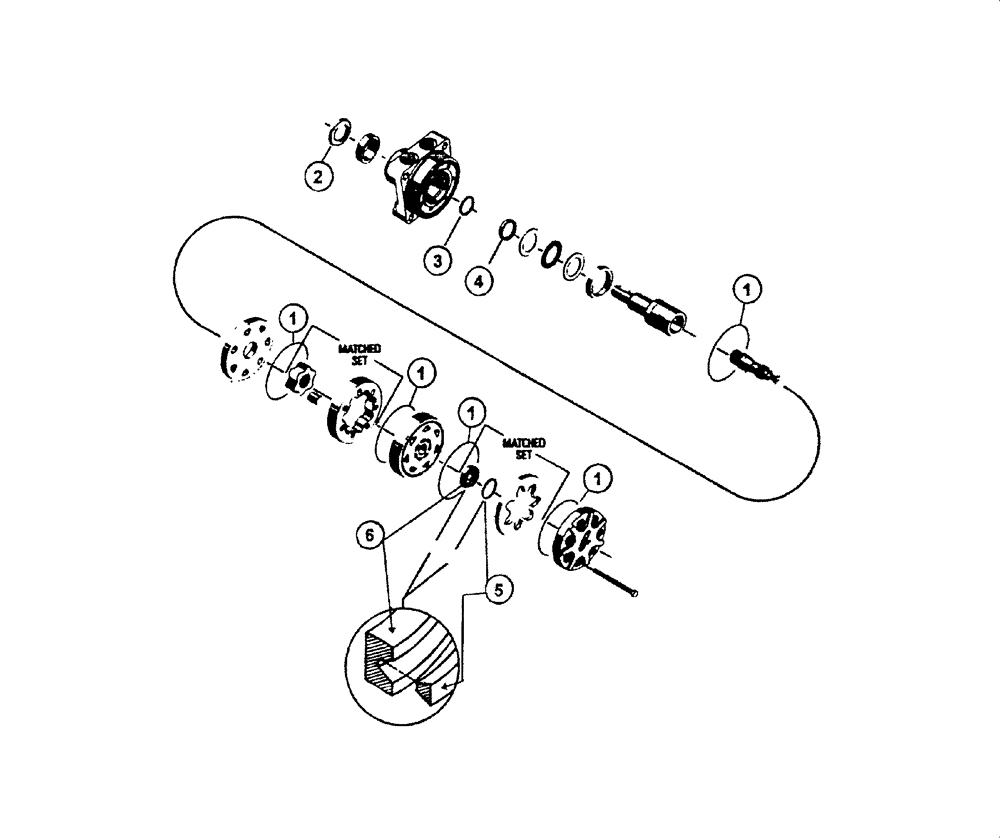

Схема запчастей Case IH FLEX-AIR - (09-002) - HYDRO MOTOR, ROSS MG12 Drivelines
1
1
1
2
3
1
5
4
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN67519

SEAL KIT

MG Ross Motor

1шт.

1

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Included in standard Seal Kit, P/N BN67519

1шт.

2

NSS

NOT SOLD SEPARAT

Dirt & Water Seal

1шт.

Included in standard Seal Kit, P/N BN67519

1шт.

3

NSS

NOT SOLD SEPARAT

Commutator Seal

1шт.

Included in standard Seal Kit, P/N BN67519

1шт.

4

NSS

NOT SOLD SEPARAT

Backup Washer

1шт.

Included in standard Seal Kit, P/N BN67519

1шт.

5

NSS

NOT SOLD SEPARAT

Inner Seal

1шт.

Included in standard Seal Kit, P/N BN67519. The Tyler set-up uses Ref. 6 and does not use Ref. 5

1шт.
