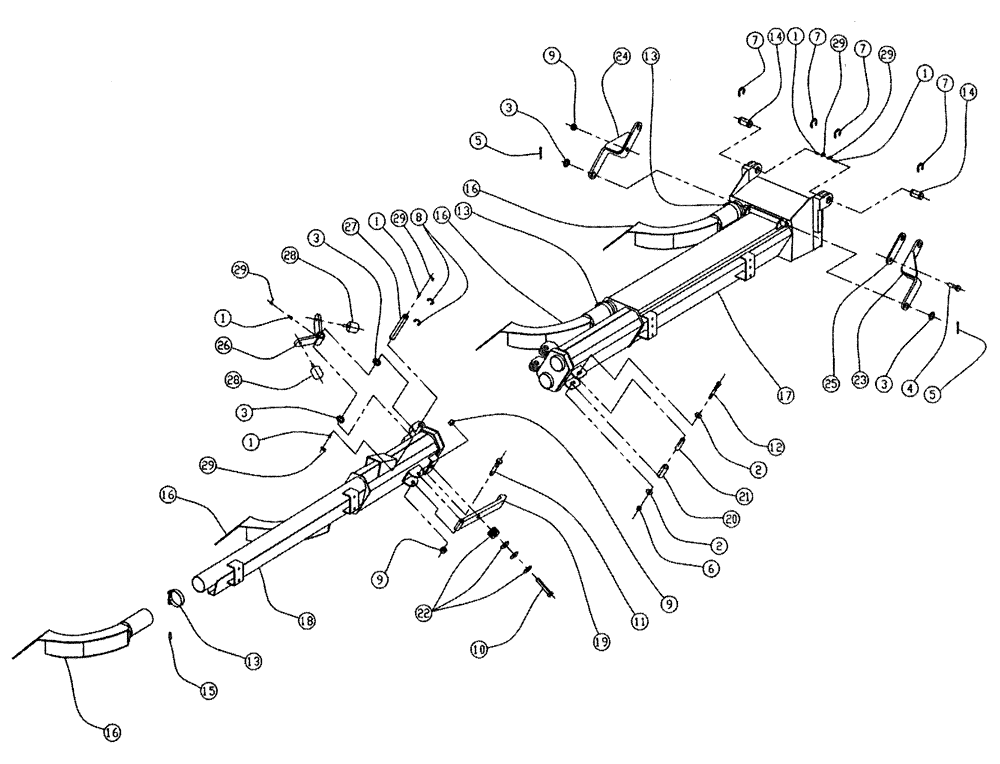

Запчасти Case IH FLEX-AIR (04-005) - BOOM GROUP, 2.5" TUBES, OUTER Boom Group

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

10шт.

2

BN50146

WASHER,3/8", Stainless

4шт.

3

BN50179

WASHER

1.25 OD X ER, .25 ID X 1.00

8шт.

4

BN50594

BOLT,1/2"-13 x 1.75", Stainless

2шт.

5

BN50604

COTTER PIN

1/8 X 1&1/2

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

7

BN52335

E-RING,1"

E-Type, 1", SST

8шт.

8

BN52336

CLIP

E-Type, 3/4", SST

4шт.

9

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

6шт.

10

BN55369

BOLT,1/2"-13 x 3", Stainless

2шт.

11

BN55372

BOLT,1/2"-13 x 3.25", Stainless

2шт.

12

BN55373

BOLT,3/8"-16 X 3-1/2", Stainless Steel

2шт.

13

87271751

CLAMP

Hi-Torque

8шт.

14

BN67861

PIN,26.42mm OD x 50.8mm L

Mid Boom Fold

4шт.

15

BN68086

CAP

Round, Rubber, .25 ID X 1.00

8шт.

16

BN68396

DEFLECTOR

Assembly, 2.5, RH

4шт.

16

BN68397

DEFLECTOR

Assembly, 2.5, LH

4шт.

17

BN69195

BOOM

Mid, 2.50, RH

1шт.

17

BN69196

BOOM

Mid, 2.50, LH

1шт.

18

BN69197

BOOM

Outer, 2.50, RH

1шт.

18

BN69198

BOOM

Outer, 2.50, LH

1шт.

19

BN69290

LINK

Breakaway

2шт.

20

BN69294

ROLLER

Breakaway

2шт.

21

BN69295

SPACER

Breakaway

2шт.

22

BN69452

SPRING

Disc - 1.5 X .515 X .07

28шт.

23

BN69456

LINK

Boom Fold, RH

2шт.

24

BN69457

LINK

Boom Fold, LH

2шт.

25

BN69466

SPACER

Boom Fold Links

2шт.

26

BN69467

STOP

Breakaway

2шт.
