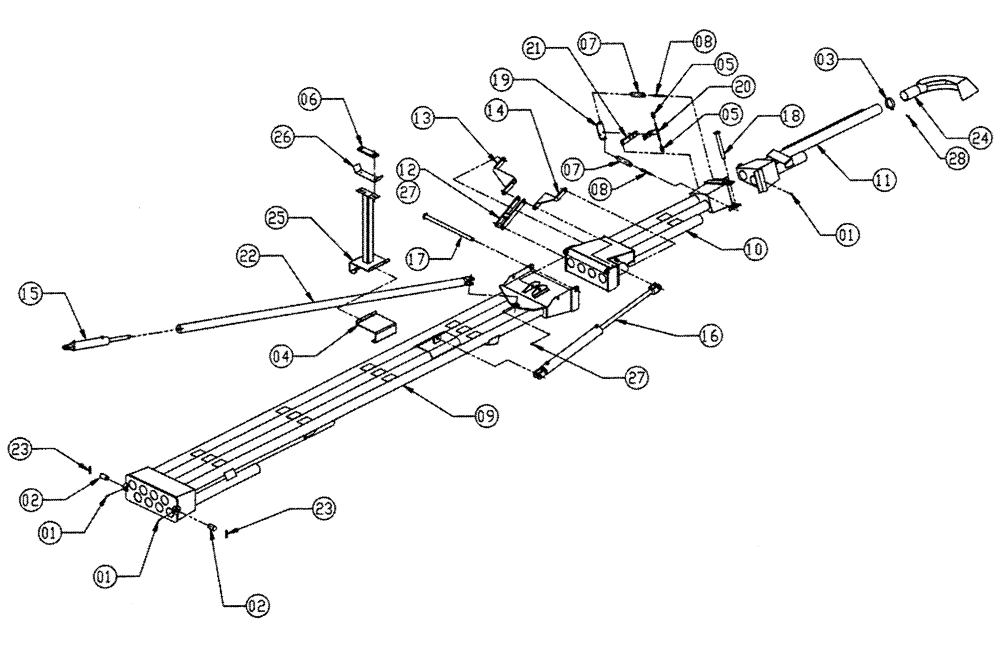

Запчасти Case IH FLEX-AIR (04-002) - BOOM GROUP Boom Group

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

6шт.

2

BN65661

PIN,31.75mm OD x 66.8mm L

1.50 DIA x 2.88

1шт.

BN15256

PIN,31.75mm OD x 63.5mm L

1.25" Dia x 2.50"

1шт.

3

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", SS, T-Bolt

16шт.

4

BN68662

BASE

Boom Tip Cradle

2шт.

5

BN19820

SPACER,10.92mm ID x 22.1mm OD x 36.2mm L

plastic .37 id x 1.42

4шт.

6

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

2шт.

7

BN24468

SPRING

tension 1.25" x 5.5"

4шт.

8

BN24504

LEVER

Takeup, Spring

4шт.

9

BN35534

BOOM

Inner RH

1шт.

BN35535

BOOM

Inner LH

1шт.

10

BN35536

BOOM

Mid RH

1шт.

BN35537

BOOM

mid LH

1шт.

11

BN35538

BOOM

Breakaway RH

1шт.

BN35539

BOOM

Breakaway LH

1шт.

12

BN35558

ARM

control link

2шт.

13

BN35561

ARM

Fold, Front, RH

1шт.

BN35562

ARM

Fold, Front, LH

1шт.

14

BN35563

ARM

Fold, Rear, RH

1шт.

BN35564

ARM

Fold, Rear, LH

1шт.

15

BN66864

CYLINDER

2.5 x 10, with Uniball

2шт.

16

BN35703

CYLINDER

2.5" X 20"

2шт.

17

BN69944

PIN

Breakaway

2шт.

18

BN69947

PIN

Boom, Mid Section

2шт.

19

BN35850

BRACKET

Spring, Breakaway

2шт.

20

BN35851

LATCH

Breakaway

2шт.

21

BN35853

SUPPORT

Latch, Breakaway

2шт.

22

BN35892

ARM

Suspension

2шт.

23

BN55198

ROLL PIN

3/8 X 2-1/2, SS

4шт.

24

344018A1

DEFLECTOR

RH

8шт.

BN65386

DEFLECTOR

LH

8шт.

25

BN68663

SUPPORT

Boom Tip

2шт.

26

BN65473

SUPPORT

Boom Tip

2шт.

27

BN10057

LUBE NIPPLE,1/4"-28 x 90

4шт.

28

BN68086

CAP

Round, Rubber, .25 ID

16шт.
