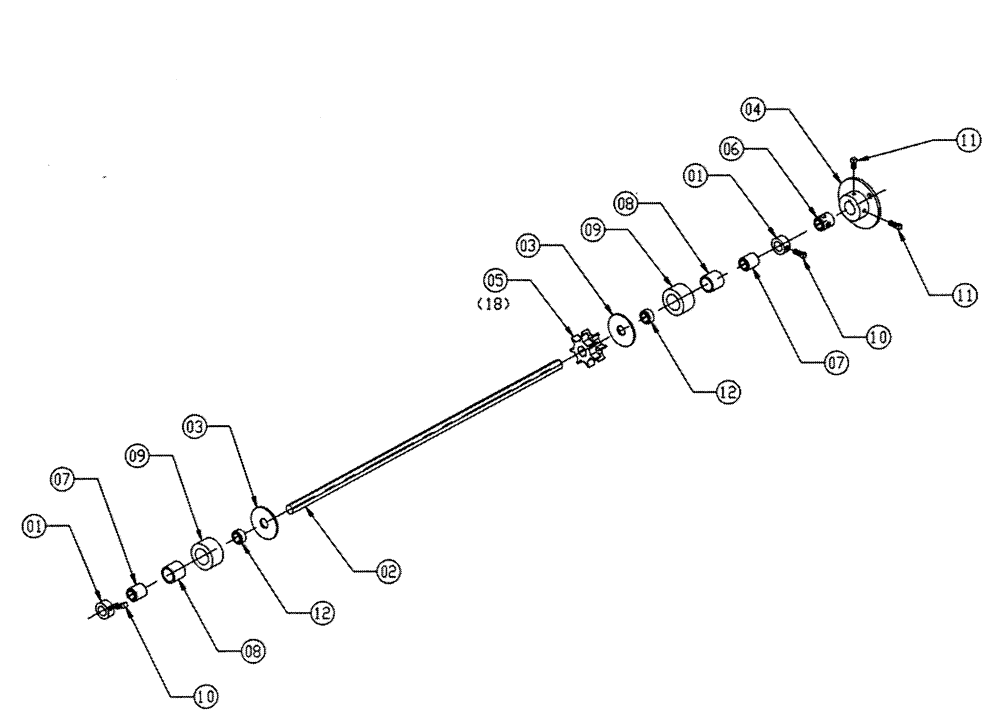

Запчасти Case IH FLEX-AIR (03-008) - COAP WHEEL ASSY - HIGH RATE Bin Group

0

BN65616

WHEEL ASSY COAP assembly, high rate

1шт.

1

BN10054

COLLAR

1 1/4" od x 3/4" id HRST

4шт.

2

BN15362

BAR

Hex, 5/8, 304 SS x 29.5

2шт.

3

BN15969

WASHER

Plastic, Co-Ap Wheel

4шт.

4

BN21398A

COUPLING

Machined

2шт.

5

BN15502

WHEEL

Gandy, Yellow

36шт.

6

BN23106

JOURNAL

Steel

4шт.

7

BN23240

JOURNAL

Nylatron

4шт.

8

BN35909

BUSHING,25.58mm ID x 31.75mm OD x 28.45mm L

Inside, Quick Change

4шт.

9

BN35910

BUSHING,31.6mm ID x 51.94mm OD x 28.45mm L

Bushing-Outside, Quick Change

4шт.

10

BN50421

SET SCREW

5/16"-18 X 1/2"

4шт.

11

BN50399

BOLT

5/16-18 X 1, SH

4шт.

12

BN65658

BUSHING

1.0 OD x .62 Hex, .50

4шт.

13

BN309412

WASHER,3/4, Stainless Steel

8шт.
