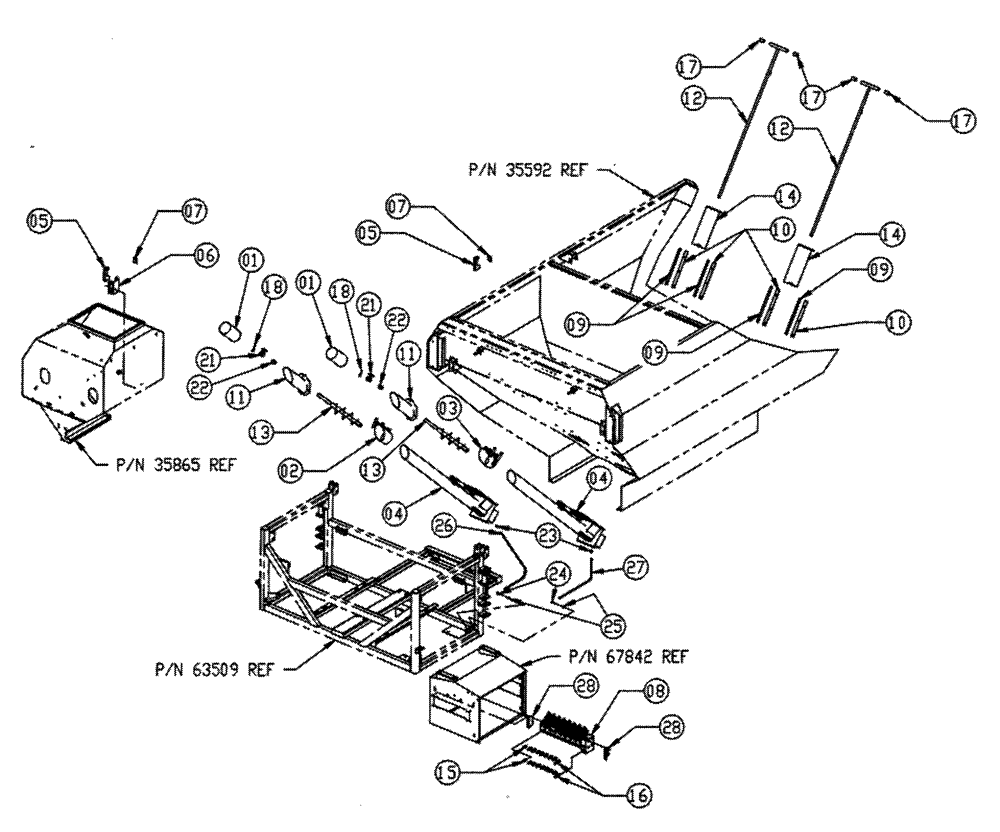

Запчасти Case IH FLEX-AIR (03-003) - 4" AUGER GROUP Bin Group

1

BN15950

Tube - Cap, Auxiliary, Auger

2шт.

2

BN15967

COUPLING

4" Auger, RH

1шт.

BN66982

GASKET

4" Clamp

1шт.

3

BN15968

COUPLING

4" Auger, LH

1шт.

BN66982

GASKET

4" Clamp

1шт.

4

BN15983

Auger Assy - 4"

2шт.

5

BN23002

SENSOR

Low Hopper - DJ100

3шт.

6

BN23105

MOUNTING PLATE

16 GA 409 5.0 X 7.5

2шт.

7

BN23298

COVER

14 GA 304 1.5 X 2.0

3шт.

8

BN35709

HYDRAULIC VALVE

Waterman 8 Bank

1шт.

9

BN35738

SLIDE

Upper, Auxiliary Gate

4шт.

10

BN35739

SLIDE

Lower, Auxiliary Gate

4шт.

11

BN35765

TUBE

CO-AP Bin

2шт.

12

BN67115

HANDLE

Auxiliary Gate

2шт.

13

BN67169

SCREW,Hex, 1/2" - 8 x 1/16"

CO-AP W/Hex

2шт.

14

BN35996

GATE ASSY

Auxiliary Hopper

2шт.

15

BN444002

ADAPTER

O-Ring

16шт.

16

BN444004

FITTING

O-Ring

2шт.

17

BN65712

CAP

Round, 937 ID X 1.50 IN

4шт.

18

BN71007

CLIP,3/16" Hairpin

3/16" #8

4шт.

21

BN66890

HANGER

4" Auger

2шт.

22

BN63711

FLANGED BEARING,25.4mm ID x 28.57mm OD x 31.75mm L

2шт.

23

BN53567

ADAPTER

1/4" - 28 X 1/8 NPT

2шт.

24

BN35805

ADAPTER

Straight 1/8 NPSM - NPTF

2шт.

25

BN53570

BHD LOCK NUT

2шт.

26

BN68083

HOSE

Grease, 87.00

1шт.

27

BN68084

HOSE

Grease, 69.00

1шт.

28

BN67858

MOUNTING PARTS

Waterman Valve

2шт.
