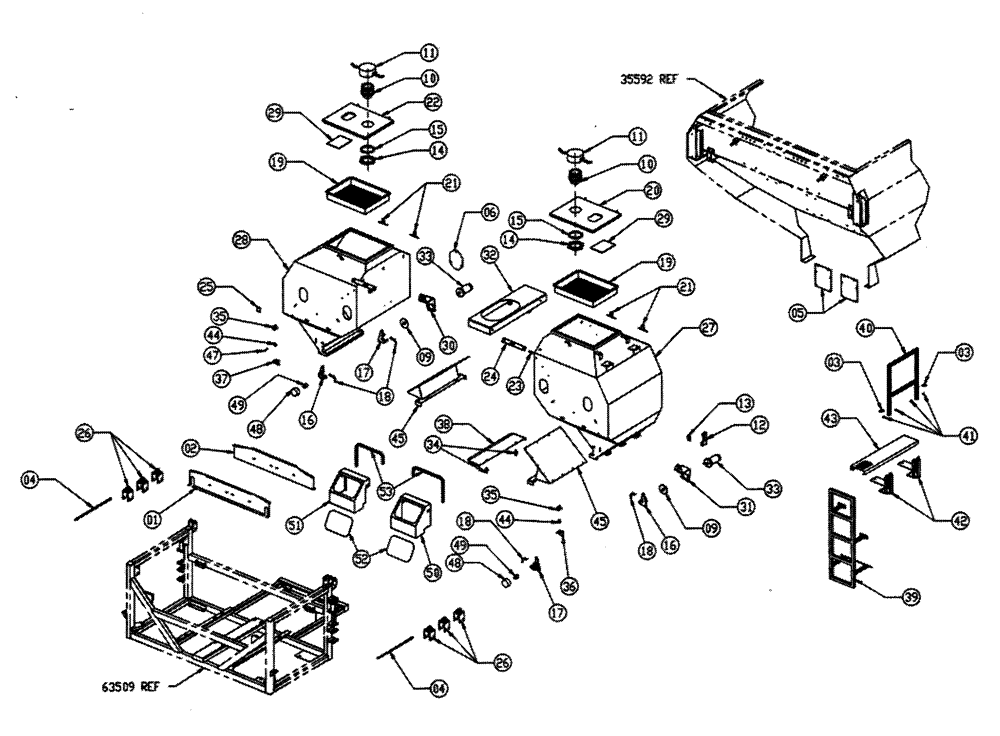

Запчасти Case IH FLEX-AIR (03-001) - DOUBLE BIN GROUP Bin Group

1

BN15711

Panel - Conveyor, Outside, W/CO-AP

1шт.

2

BN15712

Panel - Conveyor, Inside, W/CO-AP

1шт.

3

BN15717

PIN

Snap, 1/4" x 1 3/4"

2шт.

4

BN15900

PIN

CO-AP Bin Pivot

2шт.

5

BN15930

COVER

4" Auger Hole

2шт.

6

BN15970

Cover - Auxiliary Auger Hole

2шт.

7

BN20260

CABLE

1/4" Cable

4шт.

8

BN20307

Cable 1/4 IN

4шт.

9

BN21398A

COUPLING

Machined

2шт.

10

BN22944

ADAPTER

Male 4" Nyglass

2шт.

11

BN22945

CAP

4" DC Nyglass

2шт.

12

BN23002

SENSOR

Low Hopper - DJ100

2шт.

13

BN23298

COVER

14 GA 304 1.5 X 2.0

2шт.

14

BN23309

PIPE UNION NUT

4" Pipe Thread

2шт.

15

BN23310

GASKET

4"

2шт.

16

BN35705

BEARING HOUSING

Valmar, Housing, LH

2шт.

17

BN35706

BEARING HOUSING

Valmar - Housing, RH

2шт.

18

BN35707

BEARING CAP

Valmar - Bearing Latch

4шт.

19

BN35740

SCREEN

CO-AP Bin

2шт.

20

BN35758

COVER

CO-AP Bin, RH

1шт.

21

BN35761

HINGE

CO-AP Bin Cover

4шт.

22

BN35764

COVER

CO-AP Bin, LH

1шт.

23

BN35784

PIN

with hole, CO-AP Bin

2шт.

24

BN35857

MOUNTING PLATE

CO-AP Bin, Center

2шт.

25

BN35859

COVER

Shaft Hole, Co-Ap Bin

8шт.

26

BN35862

MOUNTING PLATE

CO-AP Bin, Frame

6шт.

27

BN35864

MOUNTING PLATE

CO-AP - RH

1шт.

28

BN35865

CO-AP - LH

1шт.

29

87265978

WINDOW

Co-Ap Bin

6шт.

30

BN35938

ARM

Torque - CO-AP RH

1шт.

31

BN35939

ARM

Torque - CO-AP LH

1шт.

32

BN35961

SUPPORT

Mount, CO-AP Bin, Center

1шт.

33

BN65718

HYDRAULIC MOTOR

Hydro, Ross MG12

2шт.

34

BN23023

PIN

Cover Tie Down

4шт.

35

BN65327

BRACKET

CO-AP Side Cover

4шт.

36

BN65330

BRACKET

LH, CO-AP Side Cover

1шт.

37

BN65331

BRACKET

RH CO-AP Side Cover

1шт.

38

BN65334

COVER

Conveyor, W/CO-AP Bin

2шт.

39

BN65349

LADDER

CO-AP Bin

1шт.

40

BN65366

HANDRAIL

CO-AP Bin

1шт.

41

BN65378

SPACER

CO-AP Rail

4шт.

42

BN65379

MOUNTING PLATE

CO-AP Handrail

2шт.

43

BN85384

Plank, CO-AP Bin

1шт.

44

BN65430

Pin, 3/8 X 1.38

4шт.

45

BN65434

Cover Support, Supply Bin

2шт.

46

BN300185

1/4 X 42.00, SS

2шт.

47

BN71007

CLIP,3/16" Hairpin

3/16" #8

10шт.

48

BN95852

SENSOR

Application Rate D-J#CCS1

2шт.

49

BN22884

KIT

Adaptor

2шт.

50

BN66758

COVER

Wind, RH, CO-AP

1шт.

51

BN66759

COVER

Wind, LH, CO-AP

1шт.

52

87265980

WINDOW

Hopper 12" x 8"

2шт.

53

BN67438

SEAL

Weather, Wind Cover

2шт.
