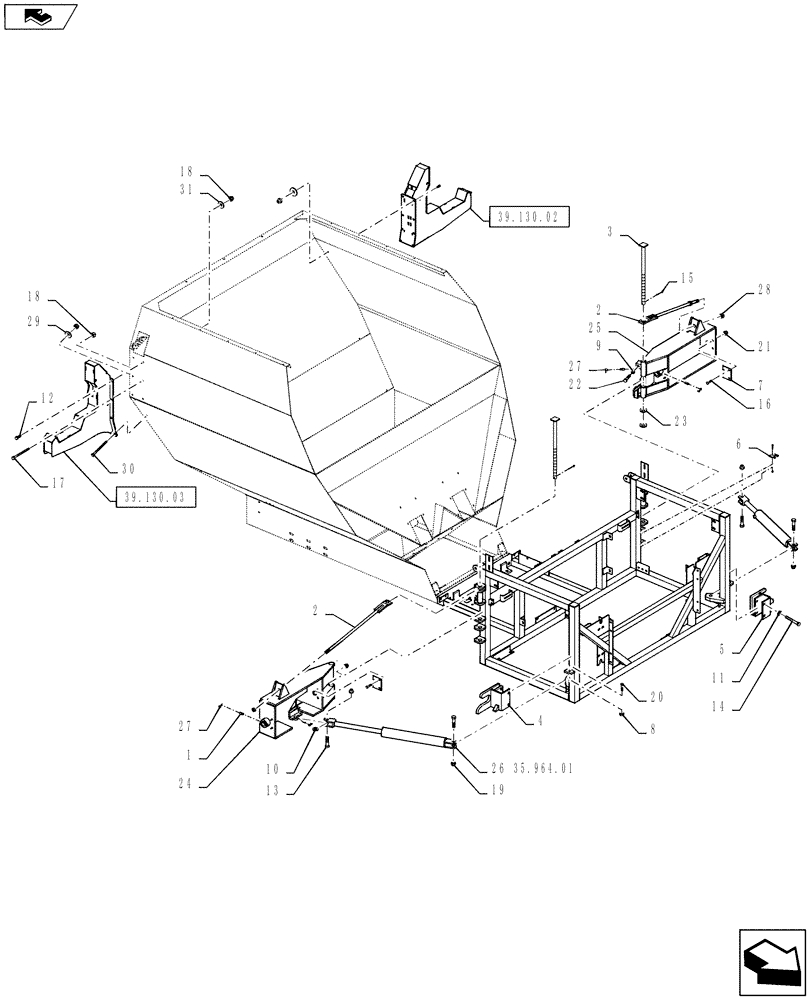

Запчасти Case IH 810 (39.130.01) - INNER BOOM FOLD ASSEMBLY (39) - FRAMES AND BALLASTING

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

12шт.

2

BN35642

SUPPORT

Boom Hinge

2шт.

3

BN35722

PIN

Boom Hinge, Inner

2шт.

4

BN35882

SUPPORT

RH Boom Hinge

1шт.

5

BN35883

SUPPORT

LH Boom Hinge

1шт.

6

343169A1

SPACER

Door Hinge, 14 GA

4шт.

BN35983

SPACER

Door Hinge, 7 GA

6шт.

BN35984

SPACER

Door Hinge, 10 GA

3шт.

BN35985

SPACER

Door Hinge, 12 GA

4шт.

7

342683A1

SPACER

Boom, 14 GA

4шт.

BN35990

SPACER

Boom, 7 GA

3шт.

BN35991

SPACER

Boom, 10GA

3шт.

BN35992

SPACER

Boom, 12GA

2шт.

8

BN50071

NUT,1/2"-13, Stainless

2шт.

9

87310318

JAM NUT

5/8-11, JAM, G8, DOR

2шт.

10

87698791

WASHER,0.75" ID x 1.25" OD x 0.13" Thk

.750 X 1.250 X .1345, CST, DOR

2шт.

11

87310424

LOCK WASHER

5/8 SPRING LK DOR

4шт.

12

87342767

BOLT

3/8"-16 x 1-1/2", G5, Full Thd

2шт.

13

87310193

BOLT,3/4"-10 X 3.00", GR5, DOR

4шт.

14

87310192

BOLT

5/8"-11 x 4", G5

4шт.

15

BN50600

COTTER PIN

3/16" X 1-1/2"

2шт.

16

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4"-20 X 1-1/4", Stainless Steel

14шт.

17

87310187

BOLT

3/8-16 X 7.5, G5, DOR

10шт.

18

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

14шт.

19

87310323

NUT,3/4"-10, GR B, DOR

4шт.

20

BN55347

BOLT

1/2-13 X 3, Stainless Steel, Tap

2шт.

21

BN55359

LOCK NUT,1/4"-20, SS

14шт.

22

87310611

BOLT

5/8-11 X 3, Gr 8, DOR

2шт.

23

87528986

WASHER,1.03" ID x 2" OD x 0.13" Thk

1 1/32" x 2" x .134"

4шт.

24

BN65724

HINGE

RH Boom

1шт.

25

BN65725

HINGE

LH Boom

1шт.

26

87266446

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Inner Boom Fold, 2.5 x 16 x 1.25, Complete

2шт.

See Fig 35.911.01 For Service Parts

1шт.

26

87266446R

REMAN-HYD CYLINDER

810 FLEX-AIR APPLICATOR, Inner Boom Fold, 2.5 x 16 x 1.25, Complete (2/12-)

2шт.

26

87266446C

CORE-HYD CYLINDER

Return Number

2шт.

27

BN69951

CAP

Grease

12шт.

28

87310317

NUT

3/4-10, GR 8, DOR

4шт.

29

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

2шт.

30

87310190

BOLT

3/8-16 X 6, G5, DOR

2шт.

31

BN53802

WASHER

Beveled, 1/2"

2шт.
