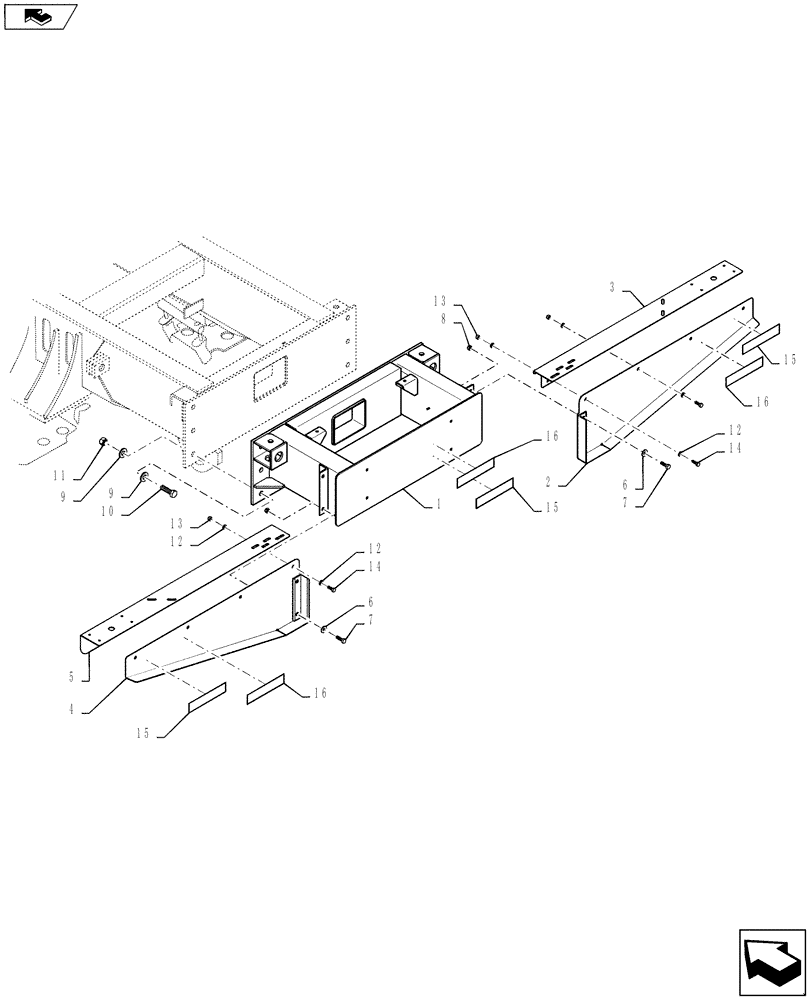

Запчасти Case IH 810 (39.100.01) - 18" STANDARD FRAME EXTENSION (39) - FRAMES AND BALLASTING

1

BN320725

EXTENSION

18"

1шт.

2

343765A1

SUPPORT TUBE

RH

1шт.

3

87269386

MOUNTING PLATE

18" Extension, RH

1шт.

4

343774A1

SUPPORT TUBE

LH

1шт.

5

87269387

MOUNTING PLATE

18" Extension, LH

1шт.

6

BN50595

WASHER,1/2", Stainless

4шт.

7

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

8

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

4шт.

9

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm, HDN, DOR

12шт.

10

87342043

BOLT,Hex, M20 x 65mm, Cl 10.9

M20 - 2.5 X 65, 10.9, DOR

6шт.

11

264031

NUT,M20 x 2.5, Cl 10

6шт.

12

BN50146

WASHER,3/8", Stainless

16шт.

13

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

14

BN50254

BOLT,3/8"-16 x 1", Stainless

8шт.

15

311863A1

REFLECTOR

Retroreflective Red, 9 x 2

3шт.

16

311865A1

REFLECTOR

Fluorescent Orange, 9 x 2

3шт.
