(36.200.06) - SINGLE SOLENOID AIR VALVE, REAR SPRAYBAR

Запчасти Case IH 810 (36.200.06) - SINGLE SOLENOID AIR VALVE, REAR SPRAYBAR (36) - PNEUMATIC SYSTEM

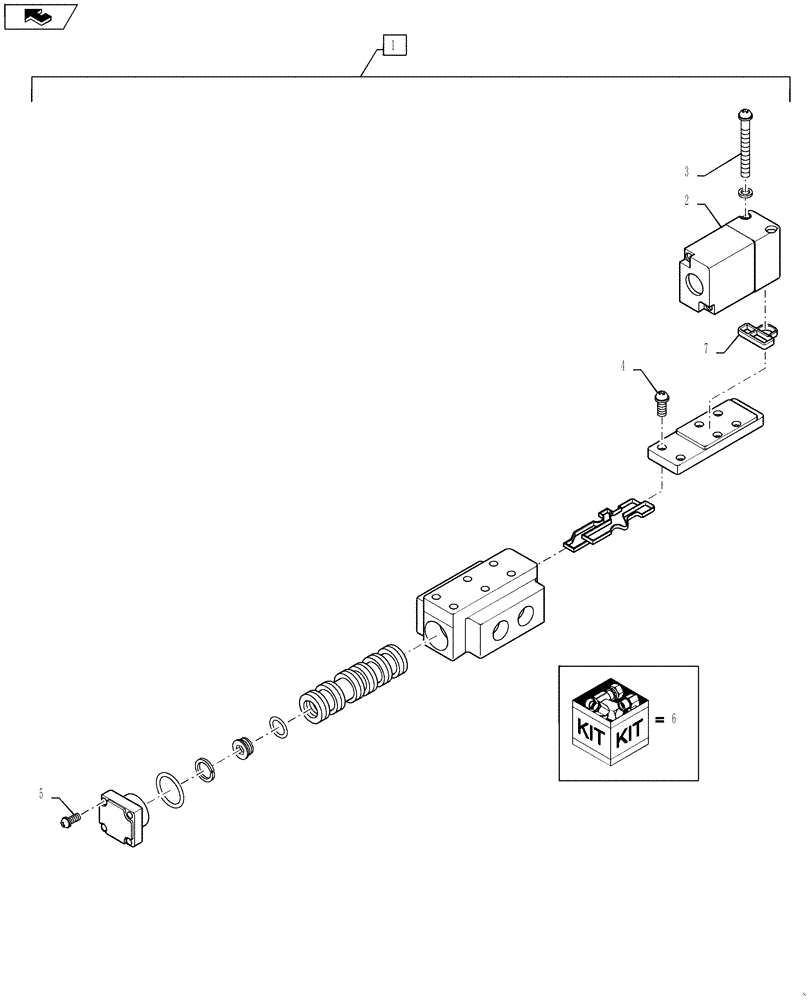

Схема запчастей Case IH 810 - (36.200.06) - SINGLE SOLENOID AIR VALVE, REAR SPRAYBAR (36) - PNEUMATIC SYSTEM
6
5
3
4
7
home
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN301602

VALVE

Air, 12VDC, 2 Position, Complete, Includes Ref 2 - 7

1шт.

2

BN307068

COIL

Pilot Assembly

1шт.

3

87267590

SCREW

Pilot Housing

2шт.

4

87267591

SCREW

Adapter Plate

2шт.

5

87267592

SCREW

Retainer Mounting

4шт.

6

BN307069

SEAL KIT

Solenoid

1шт.

7

84269276

SEAL

Pressure, Pilot Valve

1шт.

Выбрано товаров: 7
