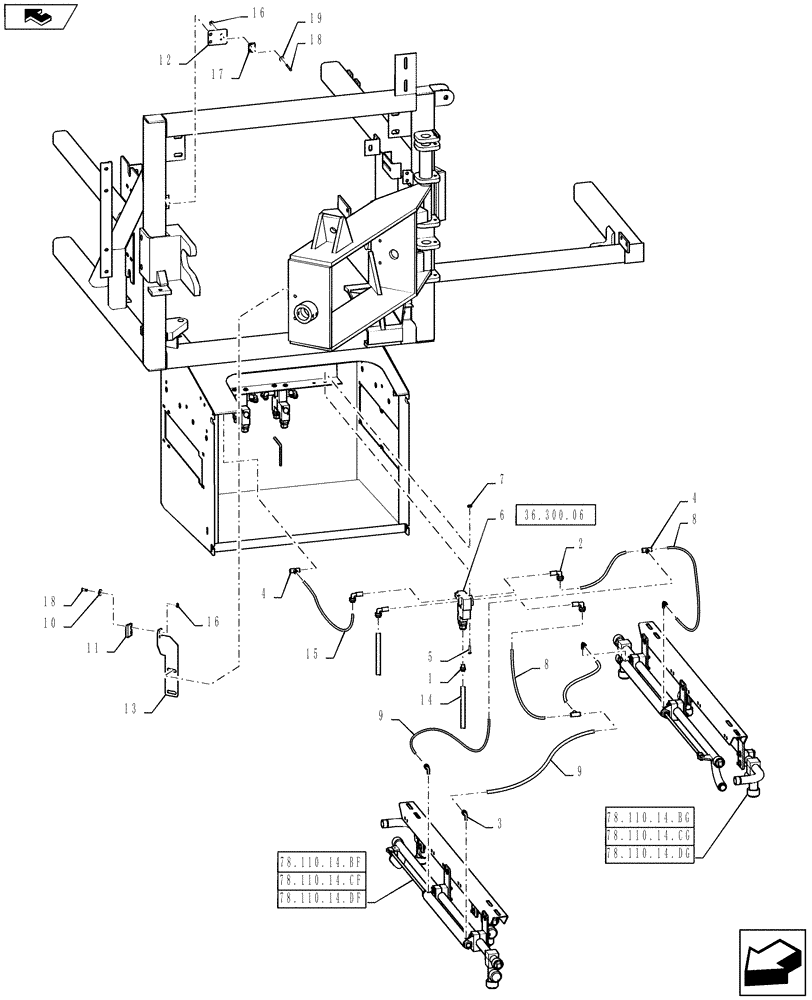

Запчасти Case IH 810 (36.200.05) - REAR SPRAYBAR PNEUMATICS (36) - PNEUMATIC SYSTEM

1

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

2

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

3

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

4

BN2399408

UNION TEE

1/4" OD Tube, Push Lock Fitting

3шт.

Fitting Attaches to Pneumatic System on Chassis. See Required Chassis Catalog For Further Parts Information

1шт.

5

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

2шт.

6

BN301602

VALVE

Air, 12VDC, 2 Position

1шт.

See Fig 36.200.06 For Service Parts

1шт.

7

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

8

BN303141

AIR HOSE,155.00"

Blue

4шт.

9

BN303142

AIR HOSE,65.00"

1/4, Blue

2шт.

10

87023529

WASHER,0.12" ID x 0.31" OD x 0.03" Thk

#4, Flat, G5

4шт.

11

BN68183

ACTUATOR

Magnet

1шт.

12

BN303223

BRACKET

Magnetic Switch

1шт.

13

BN303227

BRACKET

Magnetic Switch

1шт.

14

BN303254

AIR HOSE,43.00"

1/4", Black

2шт.

15

BN303257

AIR HOSE,33.00"

1/4", Black

1шт.

16

87023528

NUT

4-40, HH, G5

4шт.

17

BN68182

ACTUATOR

Magnetic, 12V

2шт.

18

87023527

SCREW

HH, #4-40 x .50, G5

4шт.
