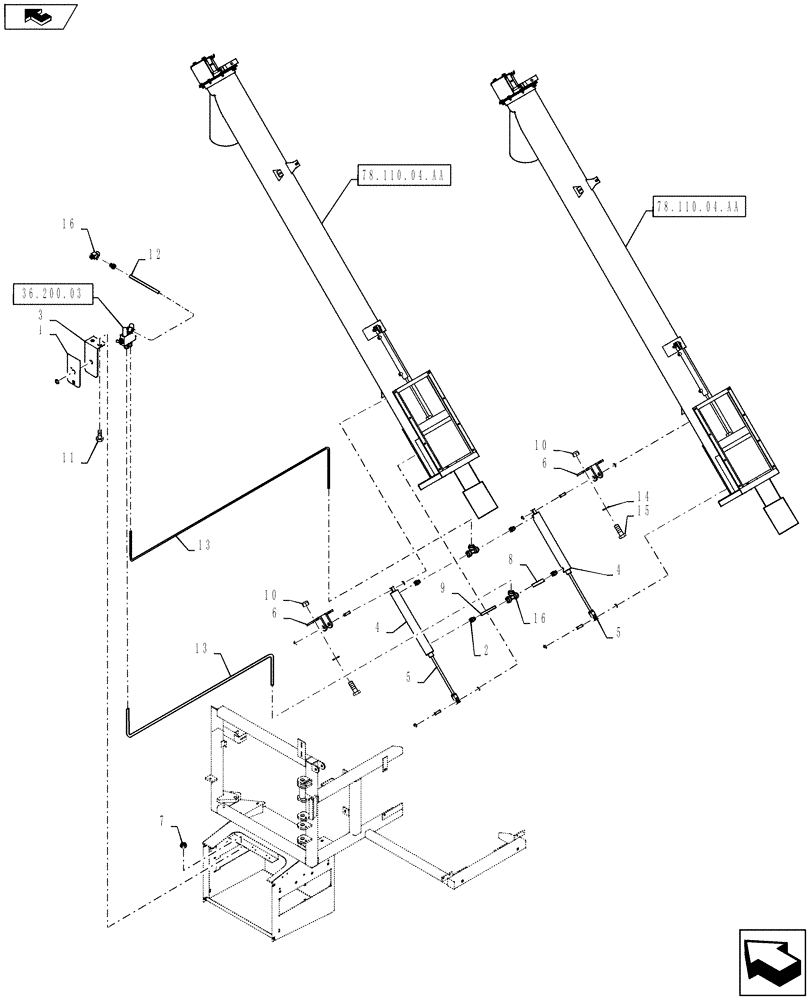

Запчасти Case IH 810 (36.200.04) - 6" AUGER PNEUMATIC CLEAN OUT DOOR CONTROL (36) - PNEUMATIC SYSTEM

1

87270536

DECAL

LH/RH Door Control

1шт.

2

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

3

87270334

MOUNTING PLATE

Air Valve

1шт.

4

BN68384

CYLINDER,Double Acting, 7.87mm Rod, 127mm Stroke

1.06 X 4, Air

2шт.

5

BN300254

KIT

Clevis, .31 Rod

2шт.

6

BN300255

REPAIR KIT

Pivot Bracket, 1.06 Cylinder

2шт.

7

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

8

BN303244

AIR HOSE,15.00"

1/4", Black

2шт.

9

BN303245

AIR HOSE,7.00"

1/4", Black

2шт.

10

BN55359

LOCK NUT,1/4"-20, SS

8шт.

11

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

12

BN303257

AIR HOSE,33.00"

1/4", Black

1шт.

13

BN303336

AIR HOSE,88.00"

1/4", Black

2шт.

14

BN50138

WASHER,1/4", SS

8шт.

15

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

16

BN2399408

UNION TEE

1/4" OD Tube, Push Lock Fitting

3шт.

Fitting Attaches to Pneumatic System on Chassis. See Required Chassis Catalog For Further Parts Information

1шт.
