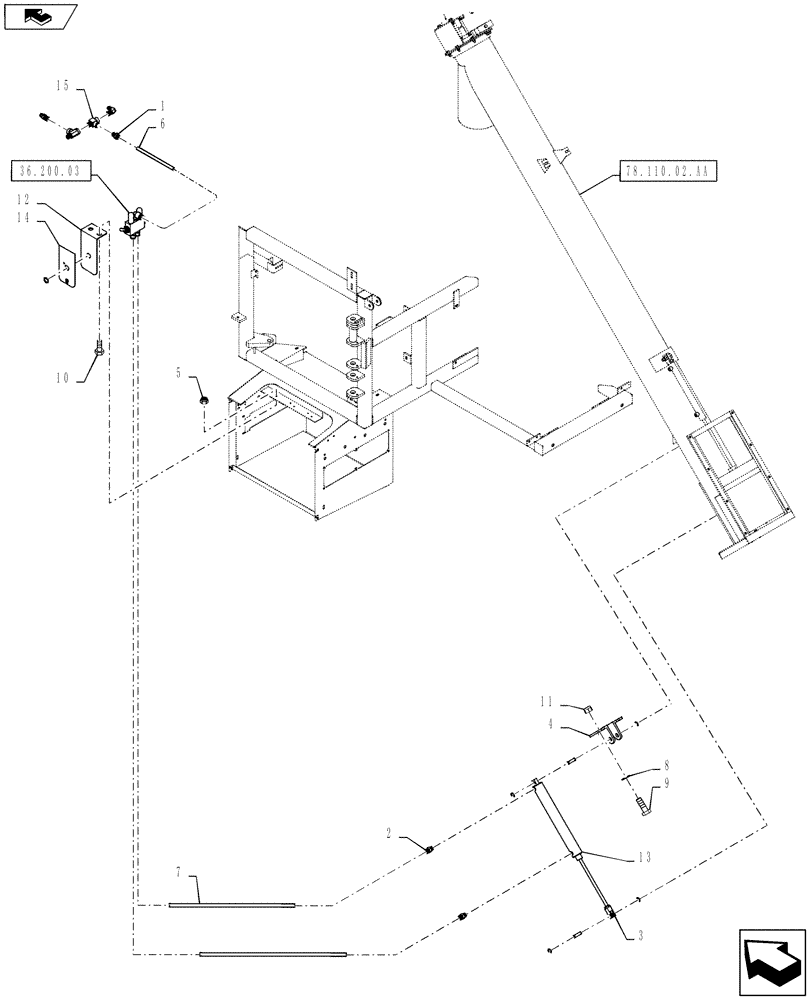

Запчасти Case IH 810 (36.200.02) - 8" AUGER PNEUMATIC CLEAN OUT DOOR CONTROL (36) - PNEUMATIC SYSTEM

1

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

2

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

3

BN300254

KIT

Clevis, .31 Rod

1шт.

4

BN300255

REPAIR KIT

Pivot Bracket, 1.06 Cylinder

1шт.

5

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

6

BN2292089

AIR INTAKE TUBE

Synflex 1/4" Black, Bulk, Cut To 10.83 Ft.

1шт.

7

BN303336

AIR HOSE,88.00"

1/4", Black

2шт.

8

BN50138

WASHER,1/4", SS

4шт.

9

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

10

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

11

BN55359

LOCK NUT,1/4"-20, SS

4шт.

12

87270334

MOUNTING PLATE

Air Valve

1шт.

13

BN68383

CYLINDER,Double Acting, 6.35mm Rod, 127mm Stroke

1.06 X 6, Air

1шт.

14

87270335

DECAL

Main Door Control

1шт.

15

BN2295095

TEE

1/4-18 NPT

1шт.

Fitting Attaches to Pneumatic System on Chassis. See Required Chassis Catalog For Further Parts Information

1шт.
