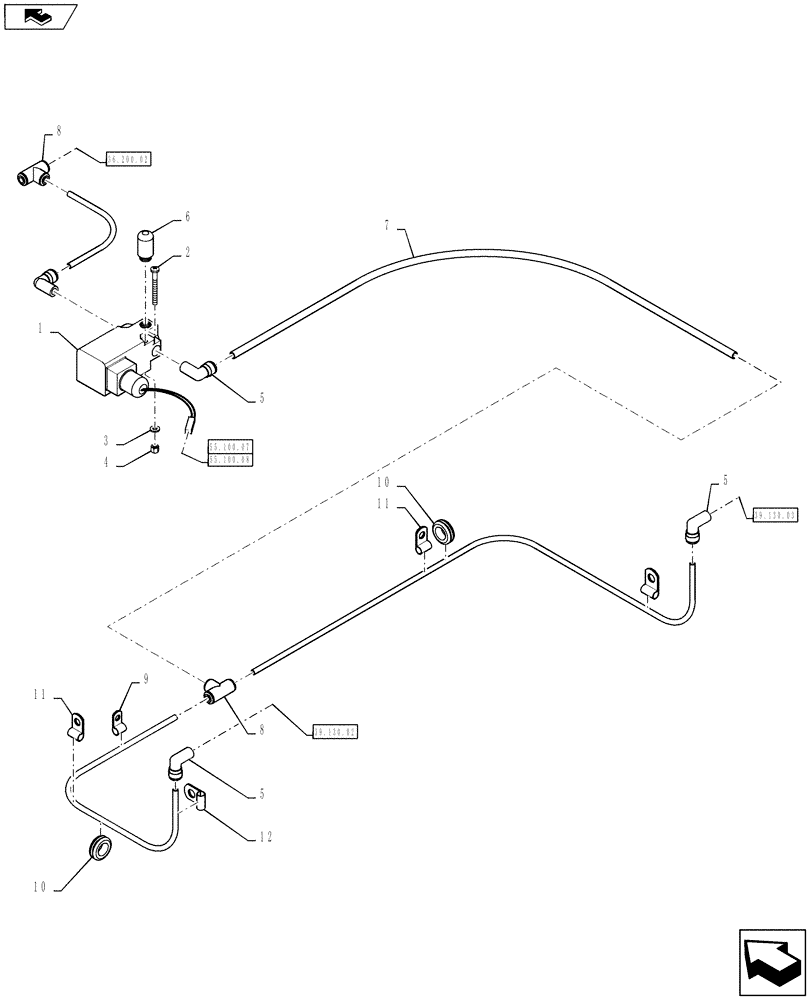

Запчасти Case IH 810 (36.200.01) - BOOM CRADLE LOCK PNEUMATICS (36) - PNEUMATIC SYSTEM

1

84124892

PNEUMATIC VALVE

Boom Lock

1шт.

2

87343617

SCREW,Phil Pan Hd, M5 x 50mm, Cl 4.8

Hex, M5 x 50, PHD 4.8 DOR

2шт.

3

BN310265

WASHER

10, Stainless Steel

2шт.

4

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

5

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

6

BN23042

MUFFLER

Air Valve, 1/4" NPT

1шт.

7

BN2292089

AIR INTAKE TUBE

Synflex 1/4" Black, Bulk, Cut To 10.83 Ft.

1шт.

8

BN2399408

UNION TEE

1/4" OD Tube, Push Lock Fitting

2шт.

9

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

1шт.

10

BN2290745

GROMMET

5/8"

2шт.

11

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

2шт.

12

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

2шт.
