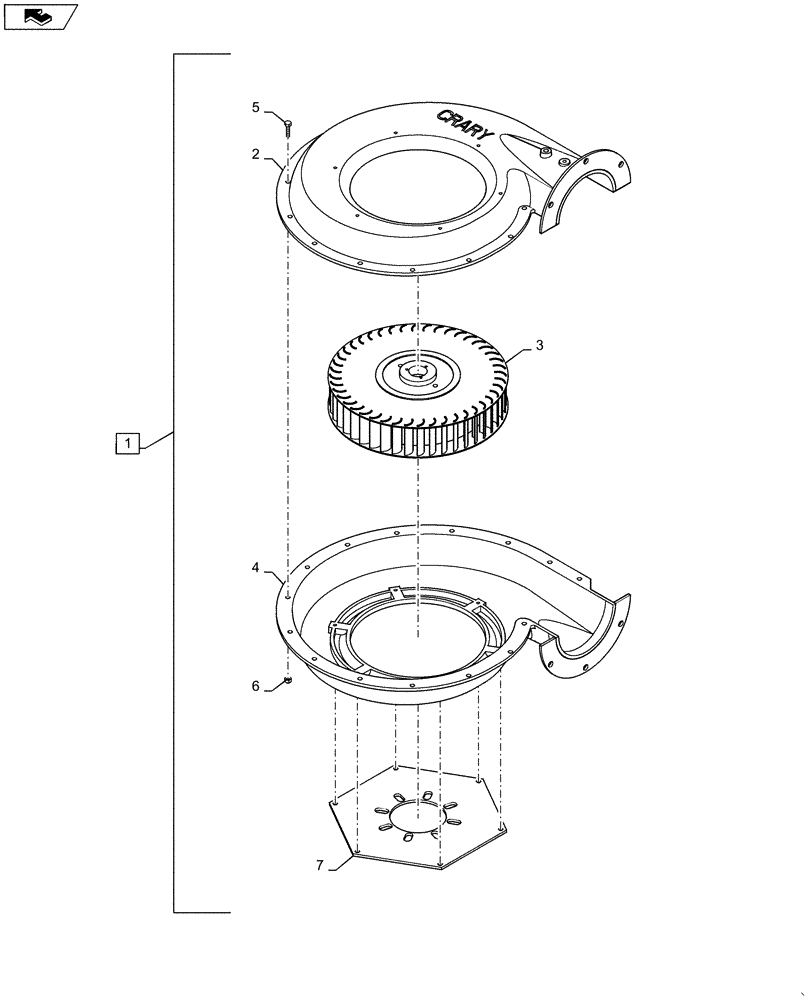

Запчасти Case IH 810 (36.100.03) - FAN, 6", CW (36) - PNEUMATIC SYSTEM

1

87265706

FAN

High Pressure, 6", CW, Complete, Includes Ref 2 - 7

1шт.

2

87265707

HOUSING

Fan, 6", RH

1шт.

3

87265709

FAN

Rotor, 6", CW

1шт.

4

87265708

HOUSING

Fan, 6", LH

1шт.

5

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

15шт.

6

BN55359

LOCK NUT,1/4"-20, SS

15шт.

7

BN300265

PLATE

Motor Mount, B-Pilot

1шт.
