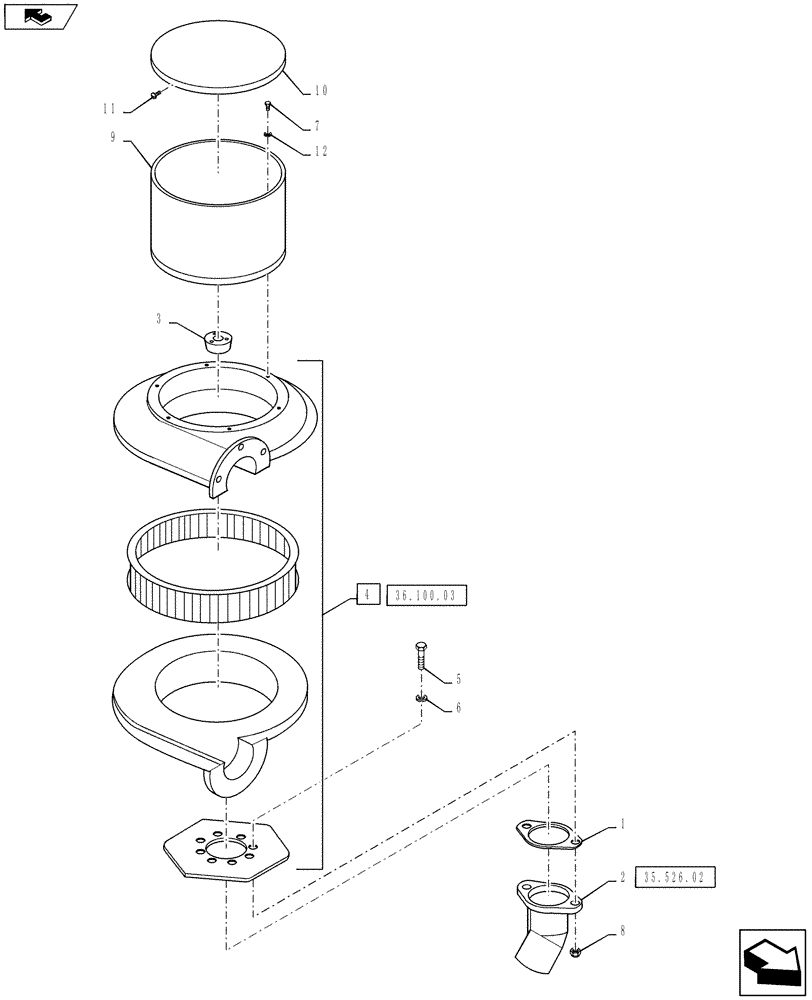

Запчасти Case IH 810 (36.100.02) - FAN GROUP, 6" CW (36) - PNEUMATIC SYSTEM

1

BN23813

GASKET

.060" Poly

1шт.

2

BN35697

HYDRAULIC MOTOR

Blower Fan, .73 Cubic Inch

1шт.

See Fig 35.526.02 For Service Parts

1шт.

BN35697R

REMAN-HYD MOTOR

810 (2/12-)

1шт.

BN35697C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

BN35698

BUSHING

Taper, 20 MM

1шт.

14723410

KEY

Not Shown, Used Between Ref 2 and Ref 3

1шт.

4

87265706

FAN

High Pressure, 6", CW

1шт.

See Fig 36.100.03 For Service Parts

1шт.

5

BN50594

BOLT,1/2"-13 x 1.75", Stainless

2шт.

6

BN50595

WASHER,1/2", Stainless

2шт.

7

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

6шт.

8

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

2шт.

9

1020543

SCREEN

Blower

1шт.

10

1020540

SCREEN

Cap

1шт.

11

BN50769

SCREW,Hex, #10 x 1/2"

#10 X .5, HH, AB

4шт.

12

BN50138

WASHER,1/4", SS

6шт.
